Gate Enterprise ASTER SX EXPERT for V2 GB + Quantum Trigger

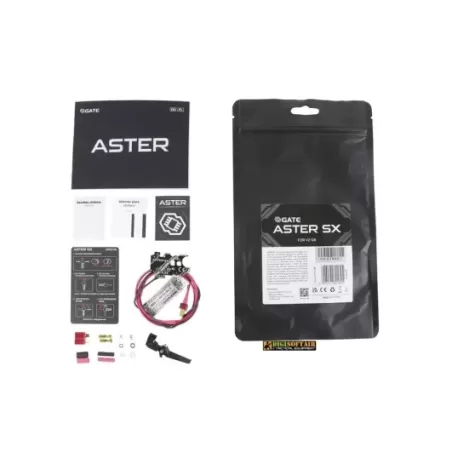

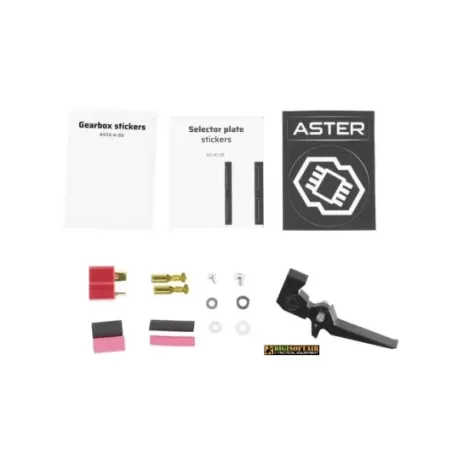

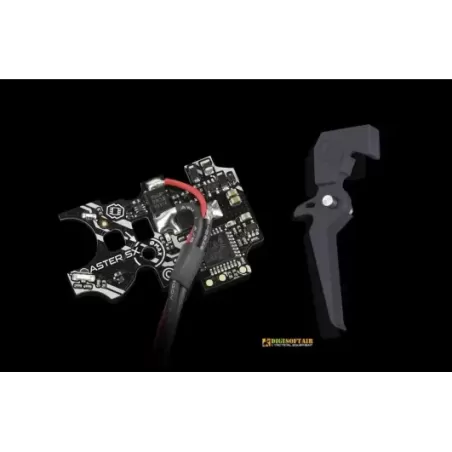

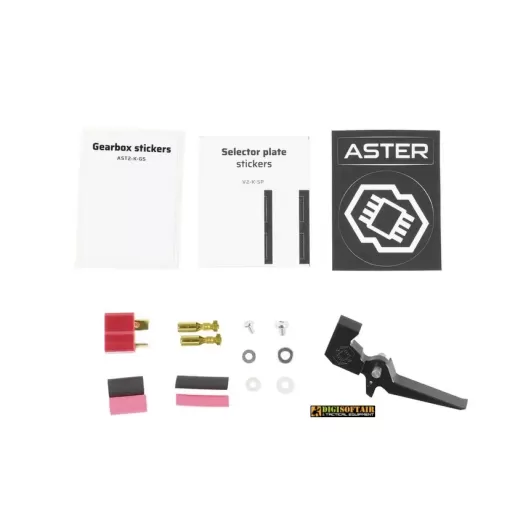

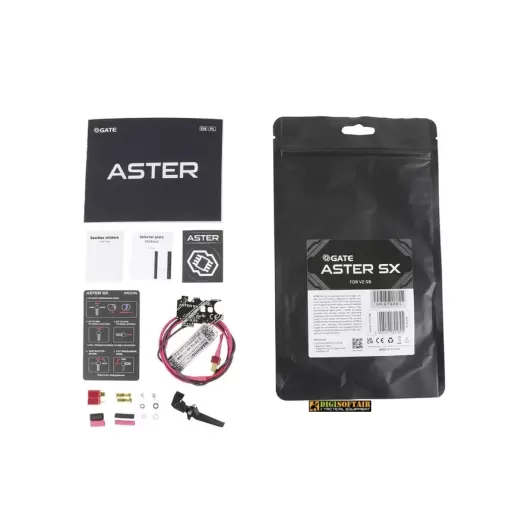

The ASTER SX EXPERT for V2 gearbox is the natural successor to the ASTER SE, merging years of experience with cutting-edge technology. This unit is fully compatible with popular brushless motors and operates with batteries up to 11.1 V. With a design that generates less heat, the ASTER SX can handle higher loads and work with stronger springs and more demanding configurations. Each unit comes with a free Quantum Trigger, allowing you to easily set the trigger sensitivity from a light touch to full movement.

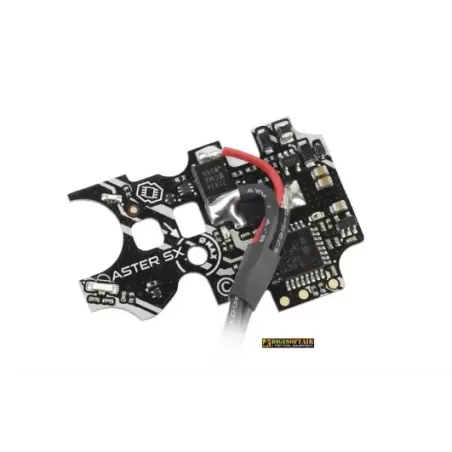

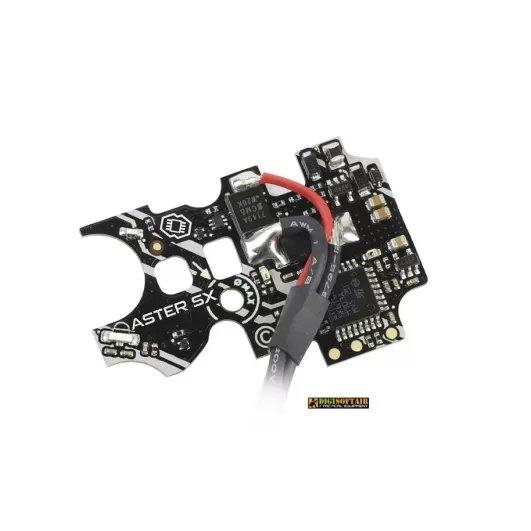

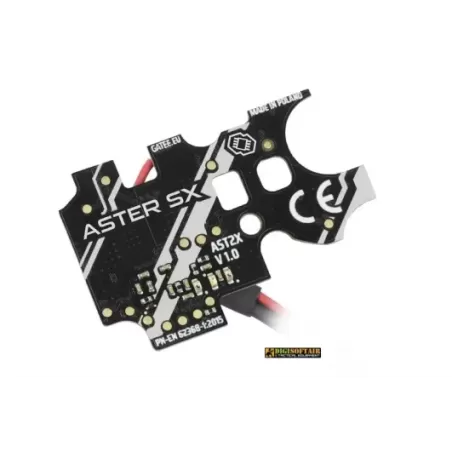

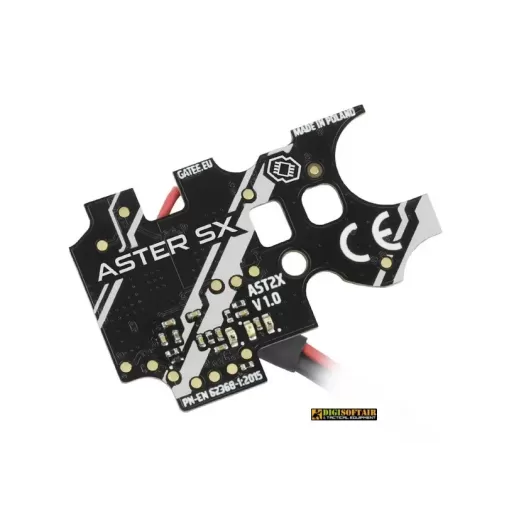

The improved programming via the trigger allows for settings like automatic Pre-Cocking, trigger sensitivity adjustment, and Active Brake settings in top-class adaptive mode. Calibration is available through trigger and selector movement. The ASTER V2 SX transforms your AEG into future-proof advanced training equipment, while its thicker and sturdier 1 mm PCB makes it one of the most durable ETUs on the market.

Key Features:

• Future-proof compatibility: With USB-Link and Blu-Link, you can update the firmware, connect additional accessories, and check telemetry.
• User-friendly programming: Navigate the menu quickly or at your own pace, using motor vibrations for feedback in case of issues.
• Automatic Pre-Cocking: Provides a trigger response similar to real firearms, with three adjustable modes: LOW, MID, and HIGH.
• Trigger sensitivity: Up to 60 in the first millimeter of movement, ensuring a highly responsive trigger.
• Low energy consumption: Only 0.29 mA in deep sleep mode to prevent battery drain.
• Advanced processor: Ensures excellent functionality management with quick responsiveness.
• Support for brushless motors: Optimized for various types of motors, including high-performance ones.
• New selector modes: SAFE - SEMI - BINARY.

Technical Specifications:

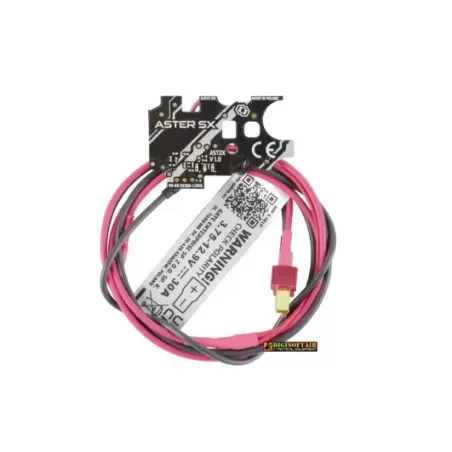

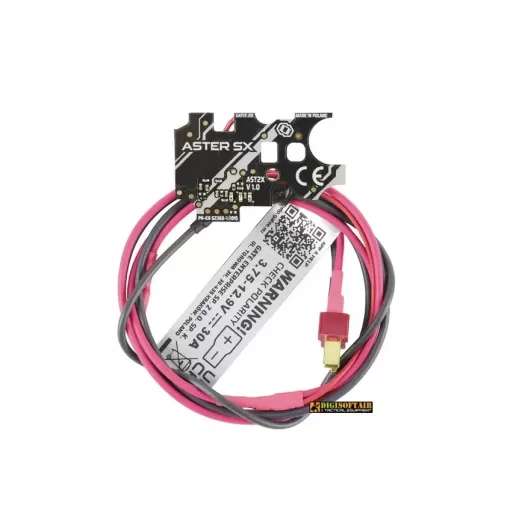

• Supply Voltage Range: 3.75 - 12.9 V
• Rated Current: 30 A
• Current Consumption: 23 mA
• Low Power Mode: 288 µA
• Dimensions (Length x Width x Height): 43.8 mm x 28.7 mm x 7.7 mm
• Finished Product Weight: 23.35 g
• Operating Temperature Range: -15°C to +50°C
• Relative Humidity: ≤ 80%

GCS App and GATE Ecosystem:

Connect your ASTER V2 SX with the GCS app to gain full control over your AEG. You can configure the ASTER V2 SX simply via the trigger or through USB-Link / Blu-Link and our advanced GCS app. Ask your technician to update the ASTER V2 SX firmware using Blu-Link or USB-Link for diagnostics or setting adjustments in a convenient way.

GCS App Features:

• Control your airsoft gun from smartphones with Android, iOS, and PC with Windows or macOS.
• Get real-time data from your smartwatch (with Wear OS or watchOS) to enhance your tactical decisions.
• No more surprises with empty magazines or drained batteries.
• Easily adjust ASTER settings during gameplay.
• Update and upgrade firmware.
• View BB counters, electrical measurements, and statistics.
• Perform diagnostics and send reports.
• Stay updated with the latest news from GATE Enterprise.

What is an ETU?

An Electronic Trigger Unit (ETU) replaces the trigger contacts and cut-off lever, taking control of your replica’s firing modes.

2-STAGE TRIGGER

• Sets two trigger sensitivities: semi/burst and burst/auto.

SELECTOR MODES

• Available selector modes:
  • SAFE: Replica cannot fire.
  • SEMI: One shot per trigger pull.
  • BINARY: One shot on pull and another on release.
  • BURST: Fires a predetermined number of BBs (Full and Interruptible Modes).
  • BURST/AUTO: Extends burst to auto if the trigger is held.
  • AUTO: Continuous fire as long as the trigger is pulled.
  • SEMI RAMPING: Switches to AUTO with rapid pulls.

PRE-COCKING

• Improves trigger responsiveness:
  • AUTO Mode: Automatic spring compression after each shot.
  • MANUAL Mode: Manually set pre-cocking values.

MAGAZINE

• Simulates a lower magazine capacity, enhancing game realism.

SERIES SAFETY LIMIT

• Sets a maximum number of BBs fired in a series to prevent jams.

SNIPER DELAY

• Sets a delay between shots to simulate reload time.

ROF CONTROL

• Controls the rate of fire with various modes (Adaptive, Manual PWM, Manual Delay, Manual Delay + PWM).

SMART TRIGGER

• Quick trigger response with the first shot at 100% ROF, subsequent shots at a programmed value.

BATTERY PROTECTION & WARNINGS

• Protection against over-discharge of batteries and low battery warnings.

ACTIVE BRAKE

• Stops the piston after a shot in SEMI Mode to reduce wear and enhance realism.

EQUALIZER

• Allows firing the next shot without fully releasing the trigger.

CYCLE DETECTION

• Precisely detects the end cycle position using a cam sensor.

DIAGNOSTICS

• Communicates errors and provides descriptions via the GCS app.

USER PROFILES

• Allows switching between 3 different profiles for game preferences.

MOSFET

• Improves ROF and trigger response by bypassing mechanical contacts.

BUILT-IN SELF-TEST

• Quick check to see if the drop-in module is functioning properly.

COATING

• Coating resistant to weather conditions (MIL-V-173C military specification).

NOTIFICATION SETTINGS

• Enables/disables warning vibrations and notifications.

FIRMWARE UPDATE

• Firmware updates via the GCS app for improvements and fixes.

Warnings for Electronic Control Units – Airsoft Replicas

• Compatible only with specific airsoft replicas. Check compatibility before installation.
• Do not tamper with the circuit or internal components.
• Installation must be carried out by qualified personnel to avoid damage.
• Use only batteries compatible with both the control unit and the replica.
• Do not expose to moisture, heat, or impacts, as this may cause malfunctions or irreparable damage.
• Before installation, disconnect the battery to prevent short circuits.
• If overheating occurs, disconnect immediately and check functionality before reuse.
• Keep out of reach of children.
