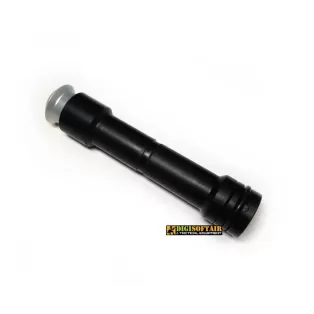

VenomSR STD PISTON
Piston for VSR10 / G-Spec series (Tokyo Marui / Well)

action army VSR 10 ZERO TRIGGER SPRING SET

Upgrade set for Ares Amoeba Striker spring action rifle. The package contains the basic parts to increase the performance.

spring M100 included

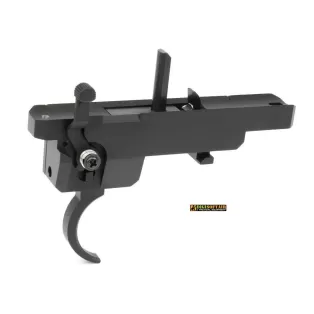

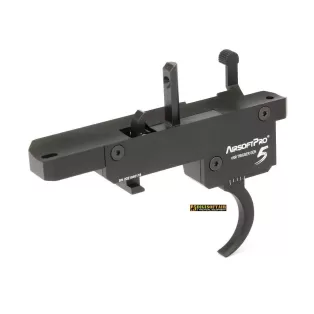

Durable and reliable trigger mechanism is basic premise for a successful upgrade sniper rifle. Stock supplied trigger mechanism is sufficient for basic springs. But when you use stronger springs, significantly increases possibility of the damage. Unfortunately you can`t avoid this even with cheap alloy triggers. Only steel machined mechanism can ensure the greatest durability.

After two years of studies, many prototypes and multiple tests, we have finally reached the FINAL version.

The zero friction for VSR10 is characterized by a body in Delrin, a plastic material with excellent mechanical properties, strong and light and with a very low surface roughness, only RA of 1.2.

The spiral milling, performed on the entire surface, gives the kit created a breathtaking appearance while at the same time reducing the contact surface between piston and cylinder; this design choice also favors the retention of the lubrication grease ensuring a constant very low friction between the parts.

The zero friction kit is not limited to the body, the kit consists of many perfectly assembled elements:
° 45 degree coupling tail in Ergal Aluminum 7075 aeronautical alloy.
° 90-degree hooking tail in burnished steel, self-lubricating and super resistant;
° Countersunk cylinder head with V-form oring, cylinder sealing oring and hopup rubber sealing oring.
° Airbrake Removable flared and locking dowel if you want to remove the airbrake.
° ERGAL 7075 aeronautical alloy spring guide with removable steel bearings. digi softair digisoftair
All in one and only KIT.


The kit consists of BOTH HOOKING TAILS, one tail will be installed and one will be loose in the package

Each single kit will be supplied with 2 sealing ORs, with relative label MB03 well and TM and clones

Each single kit will be supplied with grain and airbrake. at the time of installation, it is recommended to use thread locker.

Zero friction kit tested with the main cylinders on the market: Original TM cylinder - Original MB03 well cylinder - Actionarmy cylinder for VSR10 - Laylax cylinder for VSR10

we Digi Softair have personally evaluated and tested ESC Works products ensuring that they are functional products

VSR10 Hop up Chamber

Action Army

MARUI COMPATIBLE

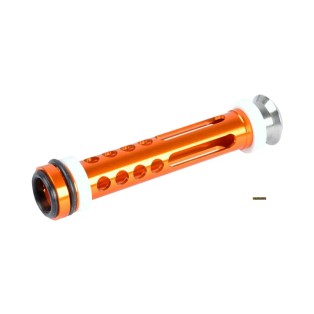

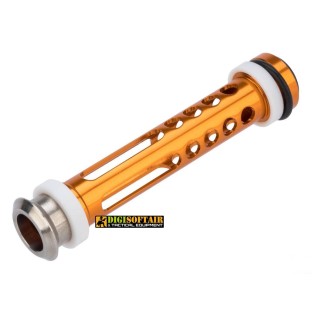

Reinforced piston for your airsoft sniper rifle. For maximum performance and durability. The hybrid piston is made of three different materials:

• Light aluminum body

• Two POM rings for better sliding in the cylinder

• Catch back end part made of stainless steel.

Compared to the previous version, the piston was completely redesigned. Rubber pad now exceeds larger area, stainless steel part is shorter, piston is more lightweight. This reduce the weight by a quarter over the previous generation. And lower weight means higher performance. The groove below the sealing ring is shallower with a modified shape, reducing the risk of head deformation due to impact. Improvements have also been made to the sliding POM piston rings for longer life of the front of the piston. They were slightly enlarged so that the metal parts did not touch cylinder and had a smoother surface.

SPECIFICATIONS:

• The piston is made by CNC machining from light, but durable aluminum alloy 6061-T6 (Dural) with a high-quality anodized finish.
• The piston catch is made of stainless steel.
• The piston has two sliding polyacetal (POM) rings.
• The piston head has an back-pressure system with O-ring (O-ring expands and seals better when shotting).
• The enlarged inner piston diameter allows you (and we recommend) to insert a stronger 9mm spring upgrade. www.digisoftiar.com
• Dimensions: lenght - 118,7mm, outer diameter - 21,8mm, inner diameter - 13,5mm
• Weight: 30g

APPLICATION:

• CYMA CM.702, which is M24 replica. No modification needed.

PISTON FOR TYPE 96

Upgrade trigger parts for Ares Amoeba Striker sniper rifles. Package include one trigger and one piston sear. Both parts are steel and hardened HRC48-55 °. The sear has a adjustable screw. This can adjust trigger travel distance.

Reinforced piston for your airsoft sniper rifle. For maximum performance and durability. The hybrid piston is made of three different materials:

    Light aluminum body

    POM ring for better sliding in the cylinder

    Catch back end part made of stainless steel.

Compared to the previous version, the piston was completely redesigned. Rubber pad now exceeds larger area with the back-pressure holes, stainless steel part is shorter, piston is more lightweight. This reduce the weight by a quarter over the previous generation. And lower weight means higher performance. The groove below the sealing ring is shallower with a modified shape, reducing the risk of head deformation due to impact. Improvements have also been made to the sliding POM piston rings for longer life of the front of the piston. They were slightly enlarged so that the metal parts did not touch cylinder and had a smoother surface.

SPECIFICATIONS:

    The piston is made by CNC machining from light, but durable aluminum alloy 6061-T6 (Dural) with a high-quality anodized finish.
    The piston catch is made of stainless steel.
    The piston has one sliding polyacetal (POM) ring.
    The piston head has an back-pressure system with O-ring (O-ring expands and seals better when shotting).
    The enlarged inner piston diameter allows you (and we recommend) to insert a stronger 9mm spring upgrade.
    Dimensions: lenght - 117mm, outer diameter - 19,8mm, inner diameter - 13,5mm www.digisoftair.com
    Weight: 30g

APPLICATION:

    Maruzen APS 2, EX , Type96
    Well MB01, MB04, MB05, MB06, MB08, MB13, MB14
    Snow Wolf (SW) M24 SW-04 , M99
    SAG E&C L96 Specna Arms L96
