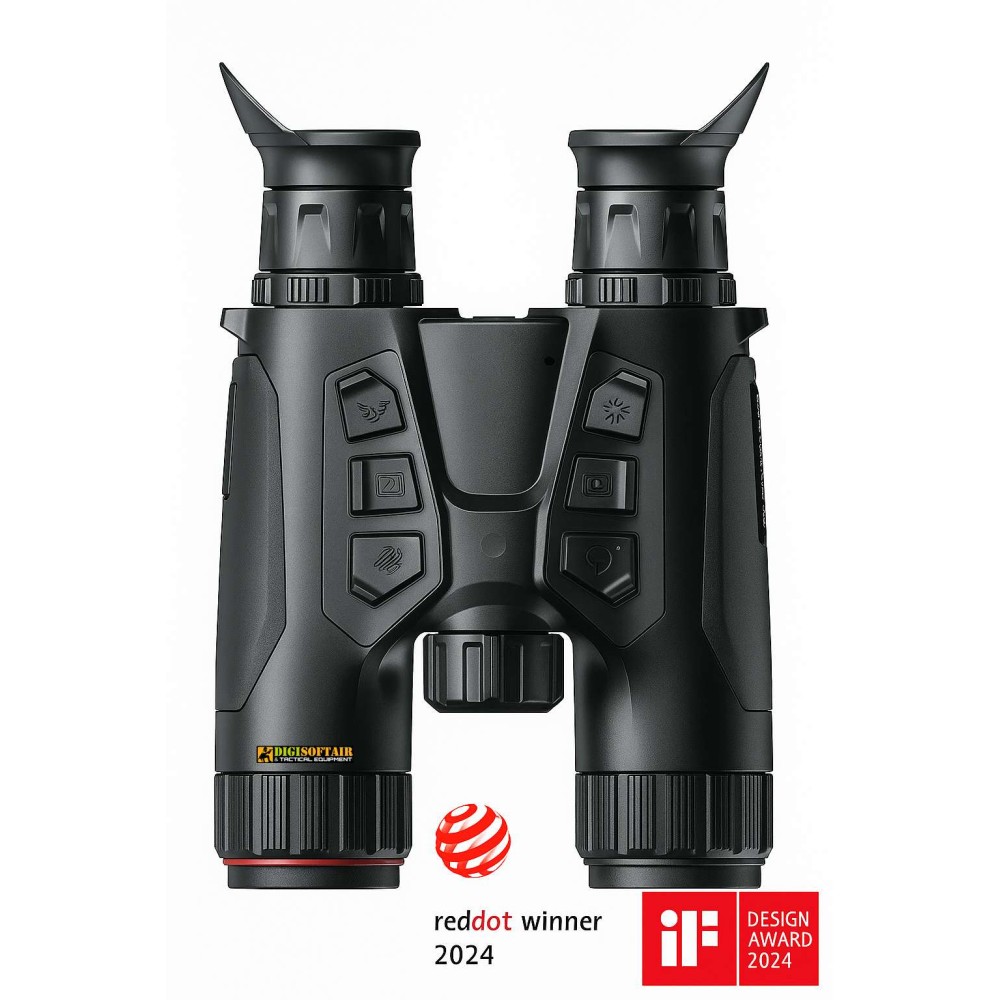

Ultra-clear imaging, impressive detail recognition: the HABROK 4K multispectral binocular — model HE25L — is designed for advanced observation and hunting from dusk to night, offering an effective combination of 4K digital optics, a VOx thermal module and integrated tools (LRF and IR illuminator) in a single compact, rugged body.

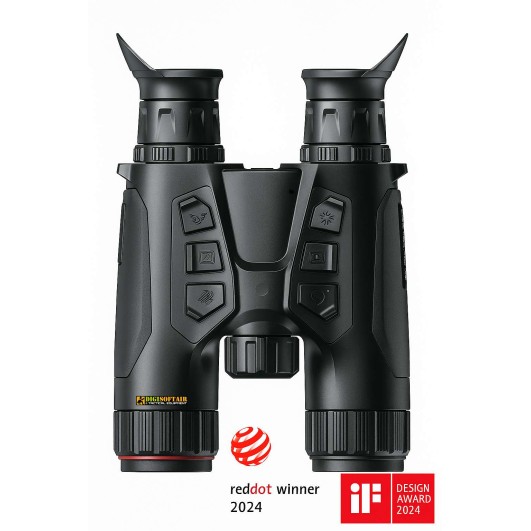

Compact but complete, the HE25L combines a VOx thermal sensor (256×192) with a 4K UHD digital camera and a 60 mm lens: this allows rapid switching from daytime to nighttime viewing without losing sharpness, identifying details at significant operational distances. The variable zoom lets you adapt the view from a wide frame to fine-detail reading, while the integrated IR emitter enhances B/W visibility in total darkness. The design inherits the award-winning aesthetics of the HABROK family: ergonomics, stability and a user interface designed to find frequently used functions quickly.

Key features and strengths

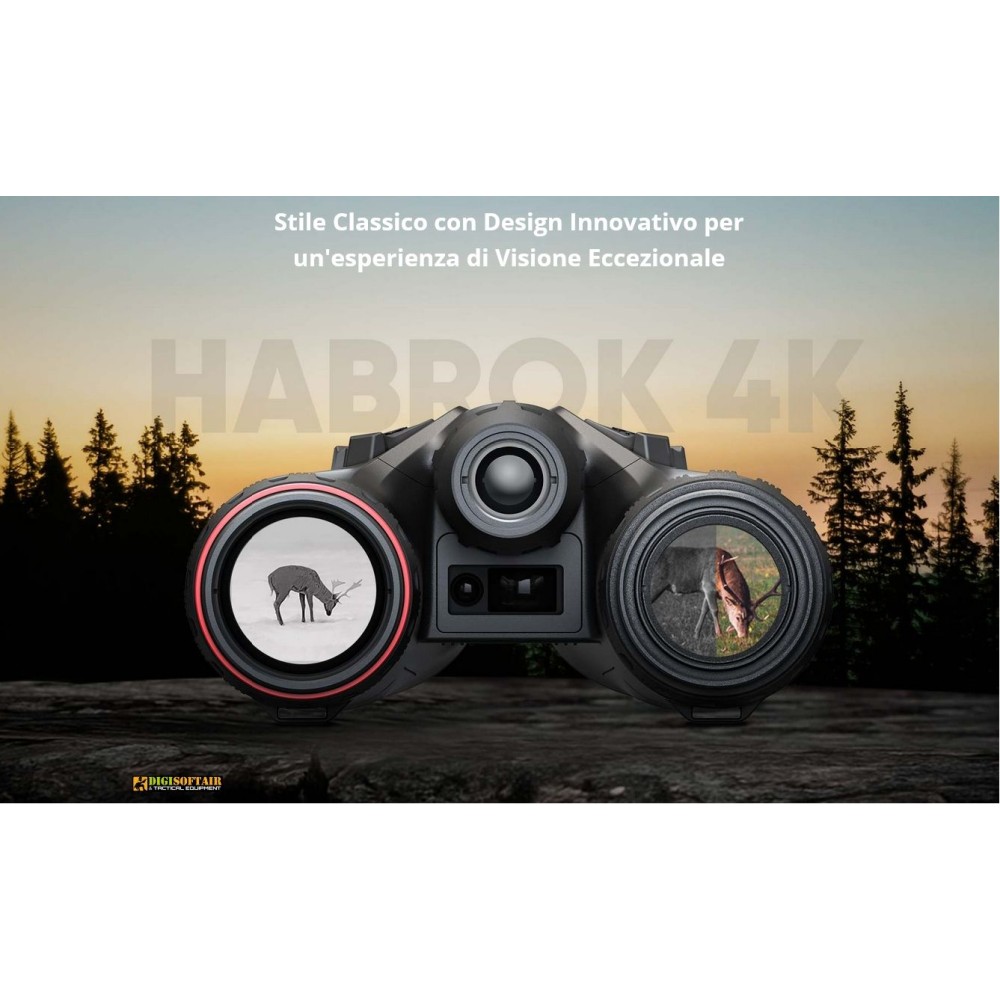

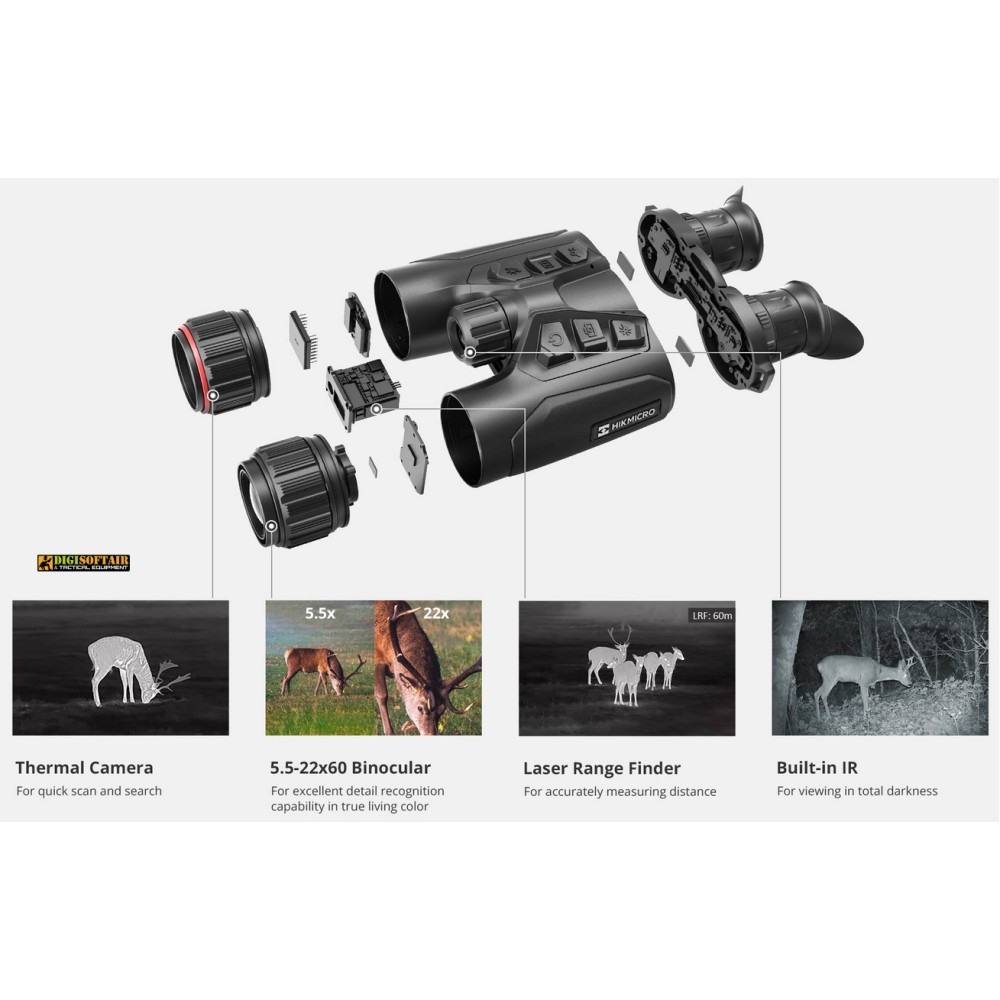

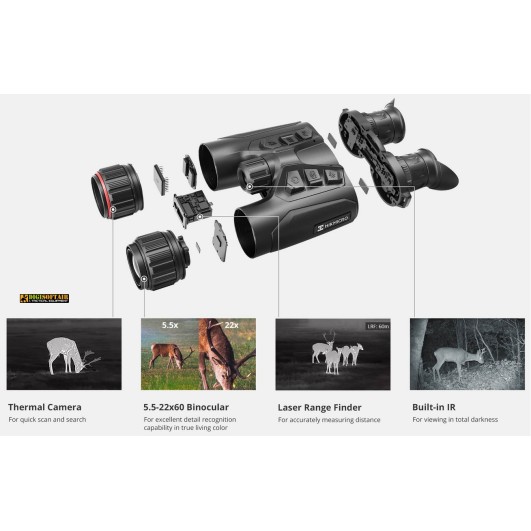

Multispectral sensing: integration of VOx thermal imaging and 4K digital camera for maximum operational versatility.

Integrated laser rangefinder and IR: distance measurements up to 1000 m and support for enhanced night vision.

Zoom and stability: 5.5–22× magnification (digital 4×) with image stabilization algorithm for steadier images at high magnification.

Robust and lightweight design: compact construction, IP67 protection and dimensions that ease transport in a room or backpack.

Memory and recording: large built-in storage and on-board video recording and snapshot capabilities to document real-time observations.

Endurance: removable and rechargeable battery pack with extended operating time for long field outings.

Technical specifications (data provided exactly as supplied by the manufacturer)

Thermal Module

Image Sensor: VOx Uncooled Focal Plane Arrays

Max. Resolution: 256 x 192

Frame Rate: 50Hz

Pixel Interval: 12μm

Response Waveband: 8μm to 14μm

NETD: Less than 35 mK (25 °C, F#=1.0)

Lens (Focal Length): 25mm, F1.0

Detection Range: 1200m

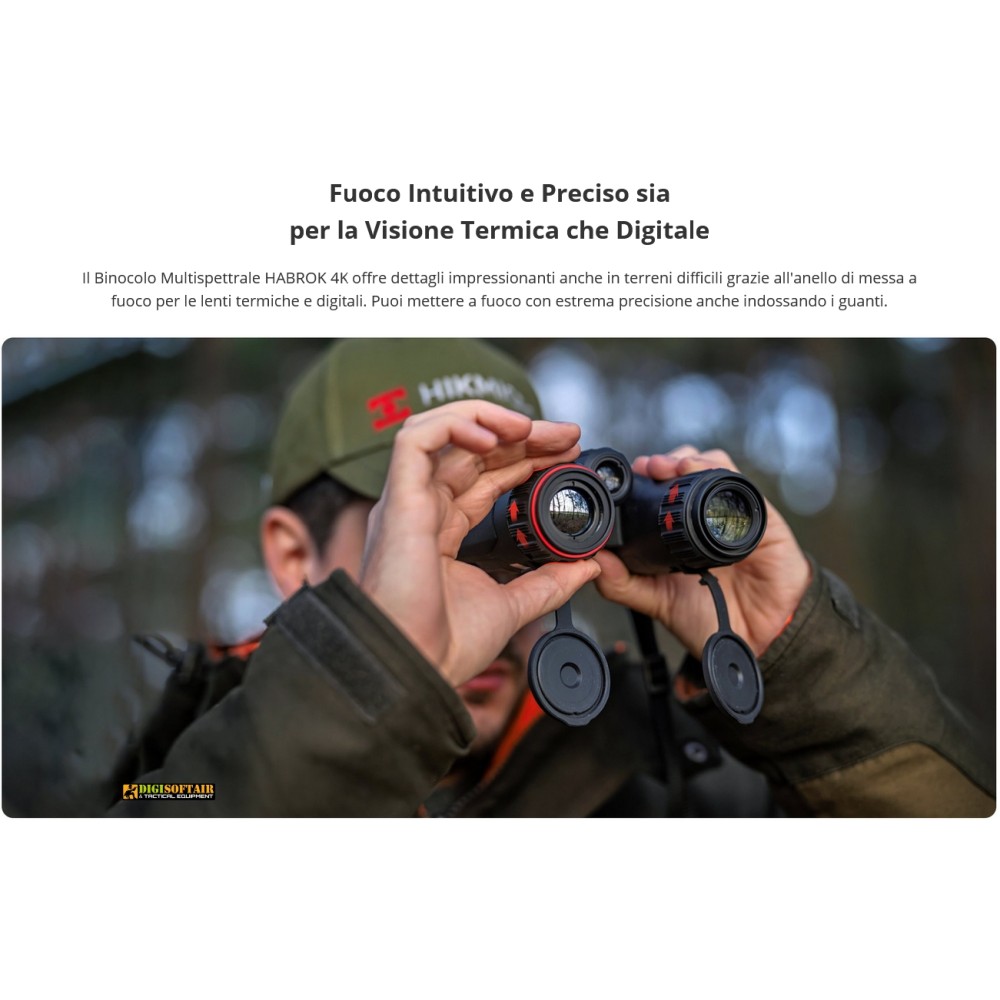

Focus Mode: Focus Ring

Field of View (H × V), Degrees / m @100m: 7.0° × 5.3° / 12.2m × 9.3m

Min. Focusing Distance: 3m

Magnification (thermal): 4.3x - 17.2x (4x)

Optical Module

Image Sensor: 1/1.8'' Progressive Scan CMOS

Max. Resolution: 3840 x 2160

Field of View (H × V), Degrees/m @100 m: 6.9° x 4.1° / 12.0m × 7.2m

Focal Length: 60mm, F2.2

Min. Working Distance: 8m

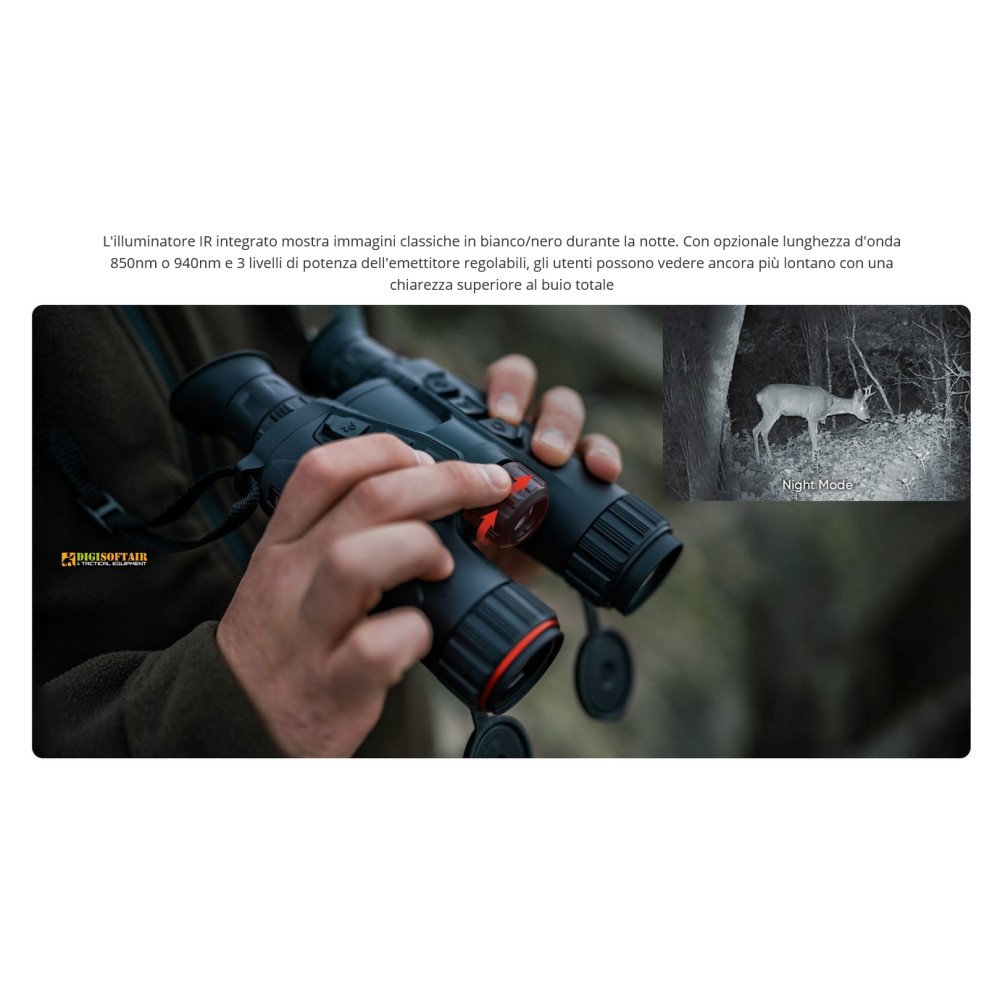

IR Illuminator Wavelength: 850nm

Viewing Range at Night: 400m

Magnification (optical/digital): 5.5x - 22.0x (4x)

Focus Mode: Focus Ring

Smart IR: Yes

Image Display & Controls

Display: 0.49 inch, OLED, 1920 × 1080

Brightness Adjustment: Yes

Palettes: Thermal — Black Hot, White Hot, Red Hot, Fusion; Optical — Day, Night, Auto

FFC (Flat Field Correction) Mode: Auto, Manual, External Correction

Exit Pupil: 8 mm

Eye Relief: 15 mm

Diopter (Range): -5D ~ +3D

Tone Adjustment: Cold, Warm

Zoom Pro: Yes

General

Protection Level: IP67

Weight: 795 g without batteries

Dimension: 138 mm × 68.2 mm × 223 mm

Working Temperature: -30 °C ~ +55 °C (-22 °F ~ +131 °F)

Interpupillary Adjustment Range: 60 mm to 74 mm

Mounting Adapter: 1/4“-20-UNC

System & Features

Record Video: Yes, on-board video recording

Capture Snapshot: Yes

Hotspot: Yes

GPS: Yes

Digital Magnetic Compass: Yes

Standby Mode: Yes

Storage: Built-in EMMC (64 GB)

PIP: Yes

Hot Track: Yes

Audio Recording: Yes

Local Album: Yes

Power Supply: Replaceable and Rechargeable Li-ion Battery

Battery Operating Time: ≥8h (25 °C, with hotspot off)

Type-C Power Supply: 5V DC, 2 A (support external power / direct charging)

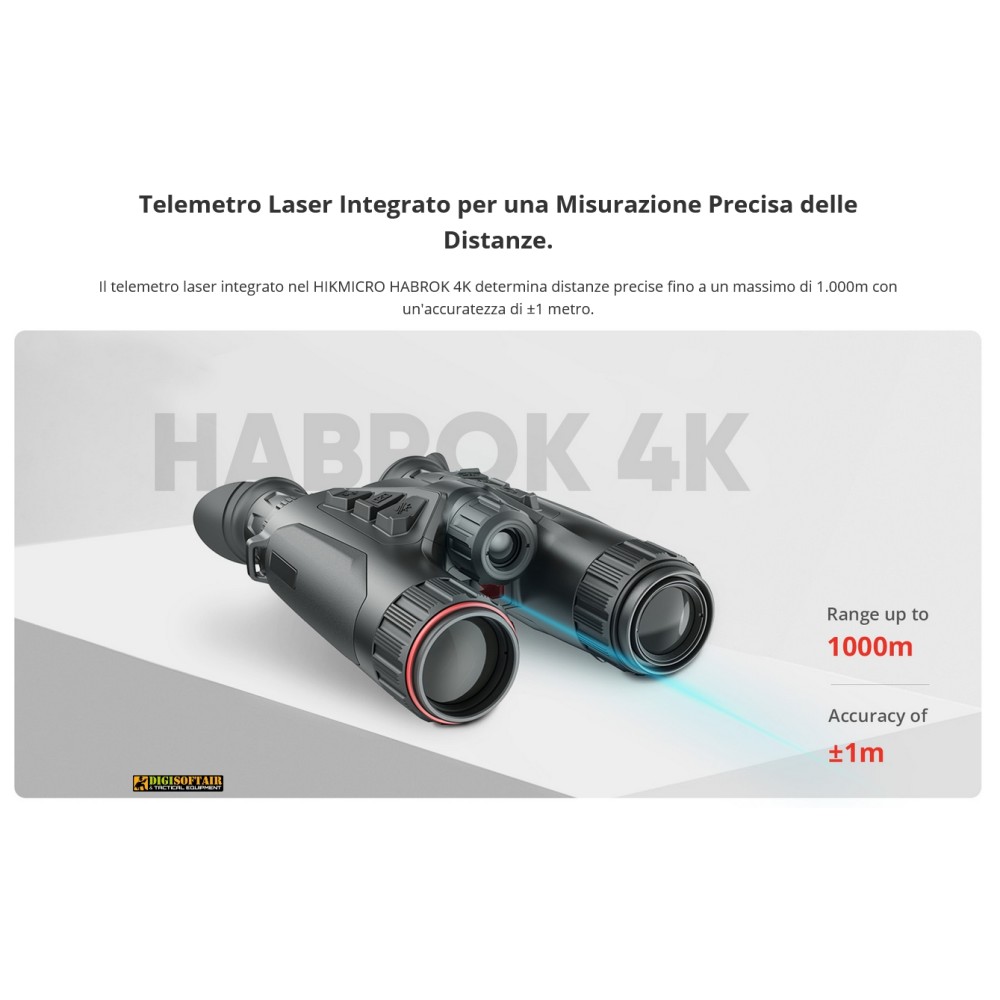

Laser Rangefinder (LRF)

Safety Class for Laser: Class 1

Wavelength: 905 nm

Max. Measuring Range: 1000 m

Measurement Accuracy: ±1 m

Min. Measuring Range: 10 m

Operational performance and practical advantages

Immediate usability: fast startup, intuitive menu and savable settings to switch quickly between thermal and optical modes.

Operational versatility: excellent for dusk hunting, wildlife observation and reconnaissance in mixed environments (woodland/open areas).

Field documentation: video recording, snapshots and integrated GPS simplify evidence collection and sharing via dedicated app.

Environmental resistance: IP67 rating and wide operating temperature range for use in extreme conditions.

Warnings and important information (to be read before use)

Sensitive electronic device: keep out of reach of children.

Avoid prolonged exposure to extreme heat sources, humidity and corrosive chemicals.

Do not disassemble or tamper with the unit: unauthorized interventions may compromise calibration, safety and warranty.

Use only batteries, chargers and accessories certified by the manufacturer; non-approved components can cause malfunctions.

Always follow the official user manual and safety instructions before any operational use.
