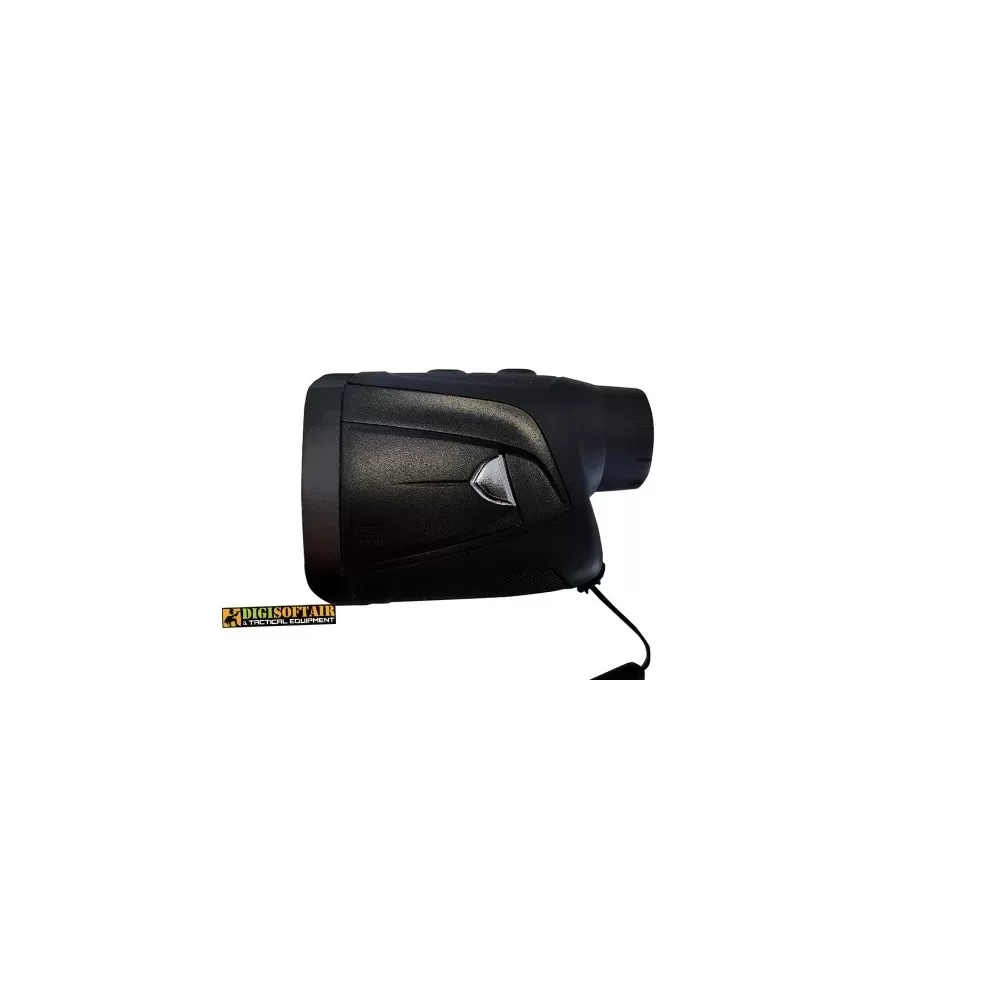

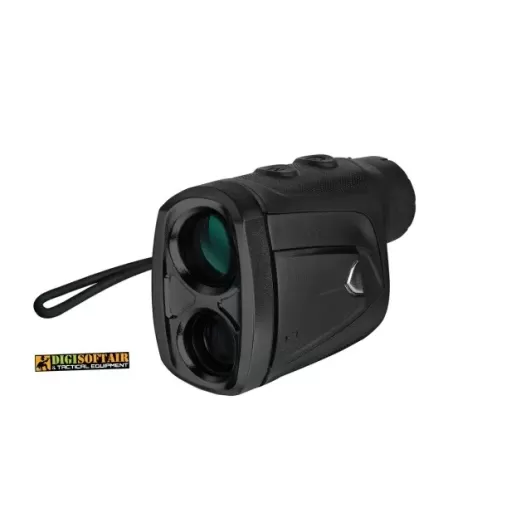

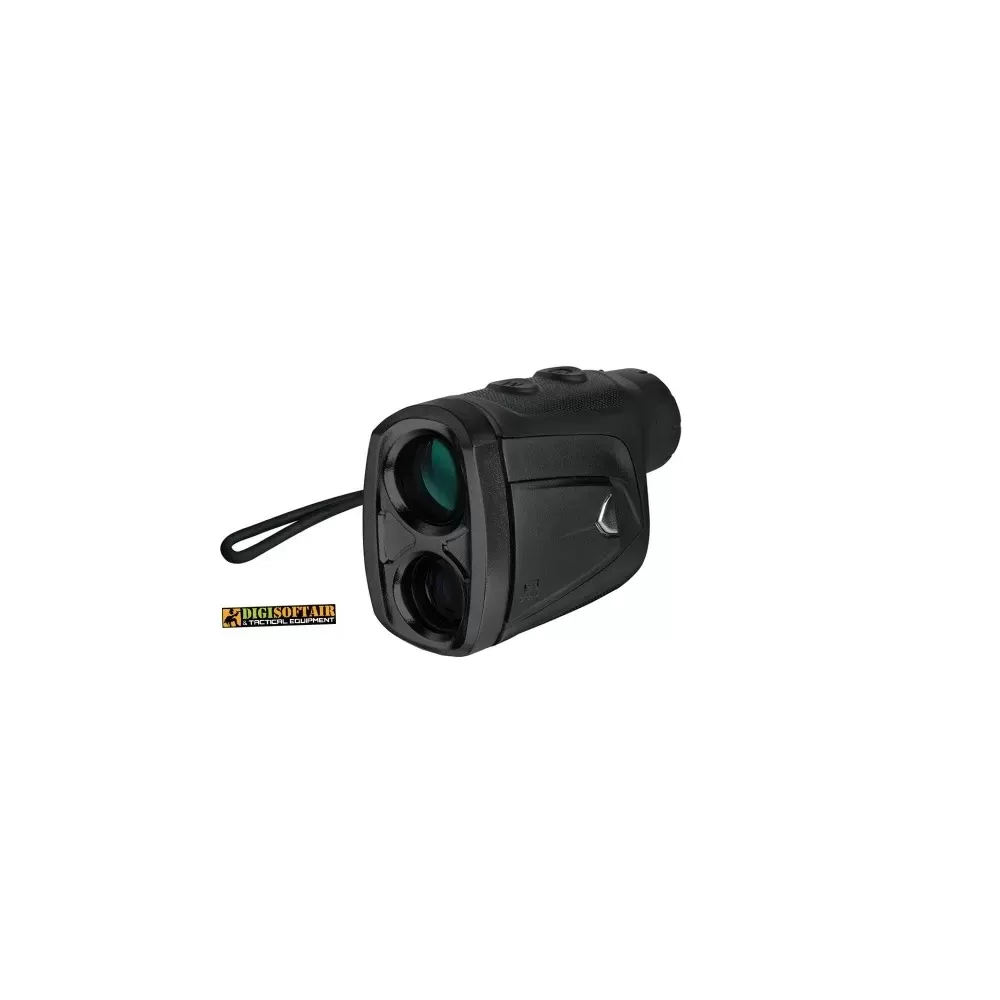

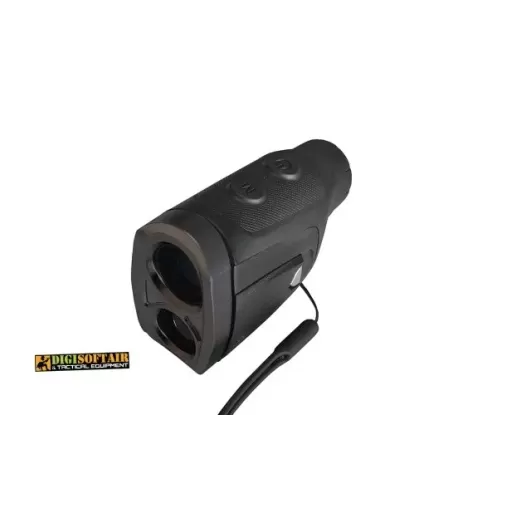

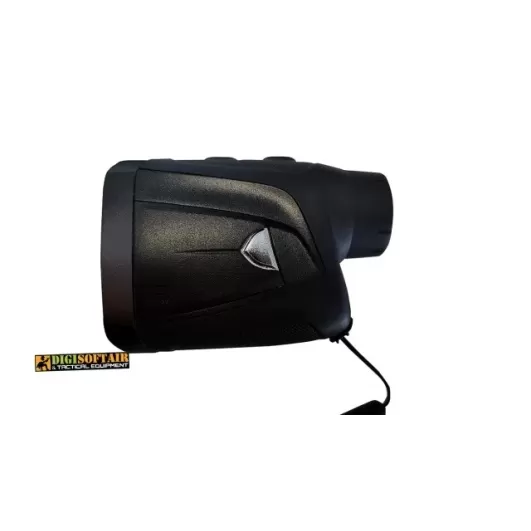

Compact rangefinder designed to deliver fast, reliable distance readings up to 1200 meters, with advanced functions for hunting, outdoor and sport shooting. Rubberized housing, 25 mm objective and 6× magnification provide stable viewing; angle compensation, scan mode, speed and height calculations make it a practical field tool.

Technical specifications

Measuring range: 5 to 1200 m/yd

Magnification: 6×

Objective diameter: 25 mm

Field of view: 128 m at 1000 m (approx.)

Exit pupil: 4.1 mm

Minimum focus distance: 5 m

Eye relief: 12 mm

Prisms: roof BAK-7 fully multi-coated

Focus system: IF (internal focus)

Advanced features: flag lock, scan mode, angle compensation, fog/rain mode, speed calculation, height calculation

Power: 1× CR2 3V battery (included)

Operating temperature: −10 °C to +50 °C

Dimensions: 70 × 43 × 100 mm (approx.)

Weight: approx. 158 g

External finish: rubberized, anti-slip

Package contents

Konus RF-1200 rangefinder (1 unit)

CR2 3V battery included

Protective case and documentation (manual/warranty) — check vendor package

End-user benefits

Fast distances up to 1200 m with practical functions for hunting and shooting.

Pocketable, lightweight design for on-the-move use.

Intuitive operation with 6× magnification for clear target acquisition.

Simple battery replacement with a commonly available CR2 cell.

Warnings and information (GPSR and Italian regulation compliant)

Keep out of reach of children.

Do not tamper with the device: modifications can compromise safety, measurement accuracy and void warranty.

Avoid pointing the unit at intense light sources for prolonged periods.

Do not immerse in water; if housing is damaged stop use and contact service.

Replace battery as instructed and dispose of used batteries according to local rules.

Avoid heavy impacts that may misalign optics; contact authorized service for faults.

Keep manual and proof of purchase for warranty claims.

Usage essentials

Power on and choose measurement units (m/yd) before use.

Focus on the target until it appears sharp; use minimum focus distance for near subjects.

Single measure: aim and press measure button, wait for stable readout.

Scan mode: enable for continuous readings while moving; use flag lock to hold the last value.

Angle compensation: enable when measuring on slopes to correct true distance.

Speed/height functions: follow manual procedures; practice on known targets to verify results.

Maintenance: clean optics with soft microfiber and dedicated cleaner; remove battery for long storage.
