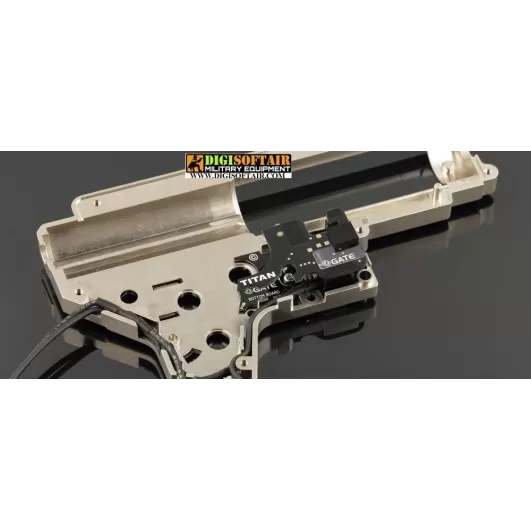

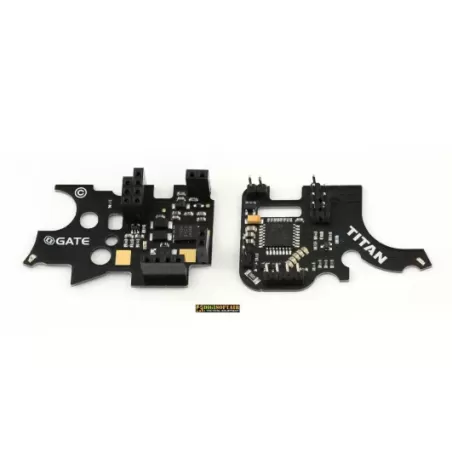

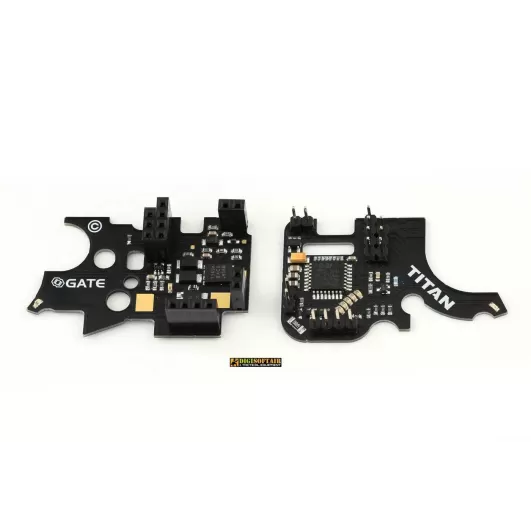

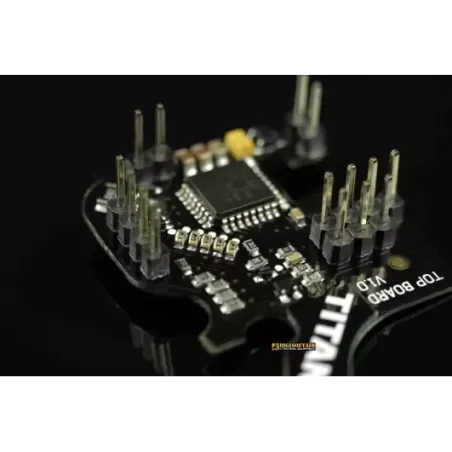

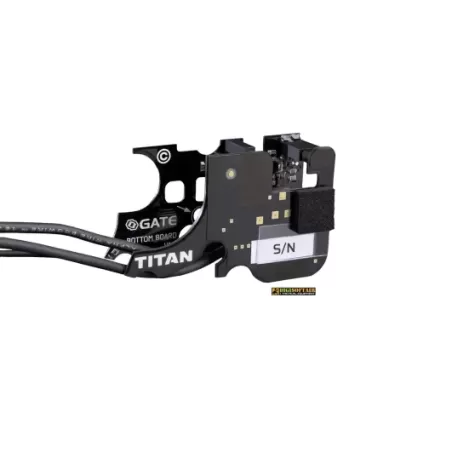

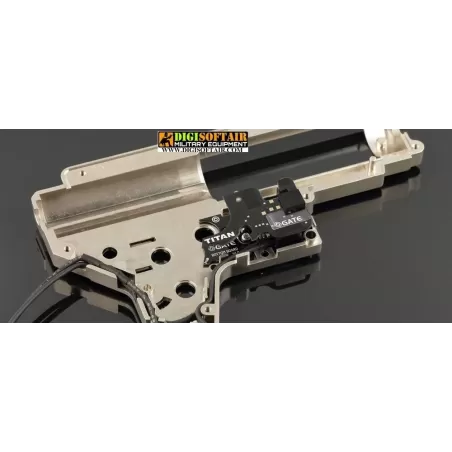

Transform your AEG with a V2 gearbox into a computerized training system and gain a unique tactical advantage thanks to extremely fast trigger response – just like in real life. One of the advantages of TITAN V2 are the 8 optical sensors

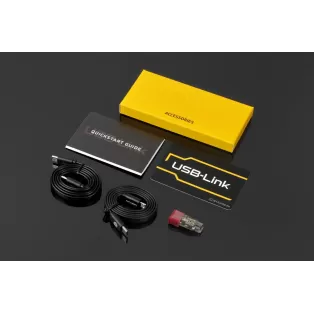

Unlike mechanical switches prone to faults, optical sensors are much more reliable. With an additional dongle—USB-Link or BluLink—you can adjust trigger sensitivity with military precision. If you need even more control, select one of the Nova Triggers – adjustable speed triggers designed especially for TITAN V2. Make no compromises and utilize years of experience of many thousands of users around the world, proving TITAN to be the best choice for advanced and professional players.
Gain a unique tactical advantage matching your skills, thanks to a reliable MOSFET with tons of functions such as Hair Trigger, BURST Mode, Active Brake, Binary Trigger, and other essentials.
SPECIFICATIONS
Supply Voltage Range 3.75-17 V
Current Consumption 24 mA
Low Power Mode 280 µA
Dimensions (Length x Width x Height) 47.4 x 28.7 x 13.5 mm
Finished Product Weight 27.6 g
Operating Temperature Range min. -15°C max. + 50°C
Relative Humidity ≤ 80%
Connect your TITAN with the GCS App and get total control of your AEG:
- Control your airsoft gun from your iOS, Android, macOS or Windows device
- Set trigger sensitivity exactly as you like and adjust other TITAN settings in a simple way
- Use automatic Pre-Cocking to gain a trigger reaction just like in a real gun
- Try out ROF control, magazine simulation, and other functions
- Update and upgrade Firmware
- Check BB counters and telemetric data
- Perform diagnostics and send reports
- Virtual STATUS for smartwatches and smartphones
- Bolt Catch and magazine sensors for a realistic reload sequence
GCS APP
TITAN and GCS App give you total control of your AEG.
The GCS offers you the option to:
- Control your airsoft gun from a smartphone with Android, iOS and PC with Windows or macOS
- Get real-time data from your smartwatch (with Wear OS or watchOS) to reinforce your tactical decisions and get the advantage necessary to win
- No more surprises with an empty magazine or a discharged battery
- Easily adjust the TITAN settings during the game
- Update and upgrade firmware
- View the BB counters, electrical measurements, and statistics
- Perform diagnostics and send reports
- Get the latest news from GATE Enterprise
What makes TITAN V2 so special?
-
Top-notch optical sensors
-
Automatic Pre-Cocking
-
Replicates trigger response just like in real life
-

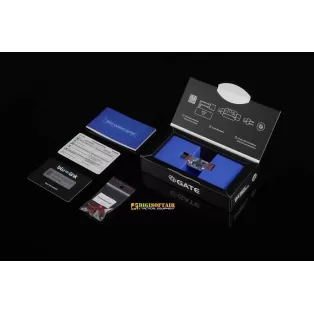

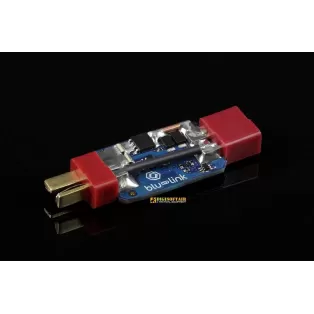

Configuration of all settings via the Bluetooth® dongle Blu-Link and GCS App for Android and iOS devices
-
Configuration of all settings via USB-Link and the GCS App for Android, Windows, and macOS devices
-
Sector gear sensor supporting most popular types of gears: DSG, SSG, 19-Tooth, and standard ones
-
Innovative optical sensors instead of mechanical switches prone to faults
-
Binary Trigger as one of the basic functions
-
Premium level functionality
-
Compatibility with GATE Ecosystem
-
Compatibility with GATE Ecosystem including GATE STATUS and future hop-up chamber with tracer
-
User-friendly GCS app for iOS, Android, macOS, Windows, watchOS, Wear OS
-
TITAN II can be connected with smartwatch
-
Ultra-precise telemetry measurements thanks to the new current sensor
NOTIFICATION SETTINGS
You can enable or disable information and warning vibrations, and make your gun stealthy.
DIAGNOSTICS
This feature allows you to troubleshoot your AEG in case of any issue. Errors are communicated once they occur, and their description can be found in the GCS App.
FIRMWARE UPDATE
GCS allows for making firmware updates via the internet, which enables you to quickly apply changes, improvements, and bugfixes.
SMART FUSE
The Smart Fuse protects your AEG’s battery, motor, and controller, even in case of reverse battery connection. A combination of current, voltage, and temperature measurements makes your AEG installation highly reliable. It protects the MOSFET against overheating, overloading, and short-circuiting. If your airsoft gun gets jammed, this function protects the motor and battery against damage.
MOSFET
Do you want to achieve a higher ROF and faster trigger response? Are you planning a power upgrade of your gun? In this case, you need a MOSFET.
It targets the energy from the battery directly to the motor, bypassing the mechanical trigger contacts. As a result, you gain a higher ROF of the gun and faster trigger response.
BUILT-IN SELF-TEST
This allows you to quickly check whether the drop-in module is working properly. It helps to locate where the problem lies when anything goes wrong.
COATING
Thanks to its special conformal coating, our product is resistant to atmospheric conditions (Military Specification MIL-V-173C).
14.8 V Li-Po READY
The drop-in module can be used with batteries up to and including 14.8 V LI-PO. The minimum operating voltage is 3 V and the maximum is 17 V.

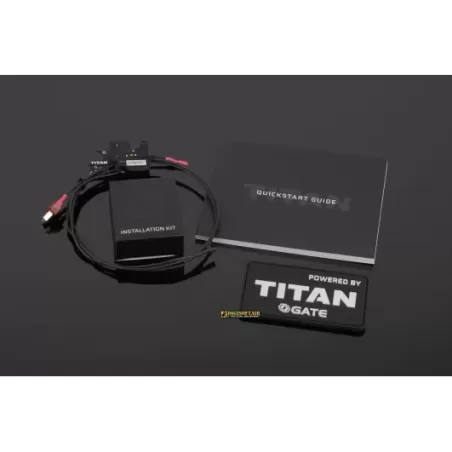

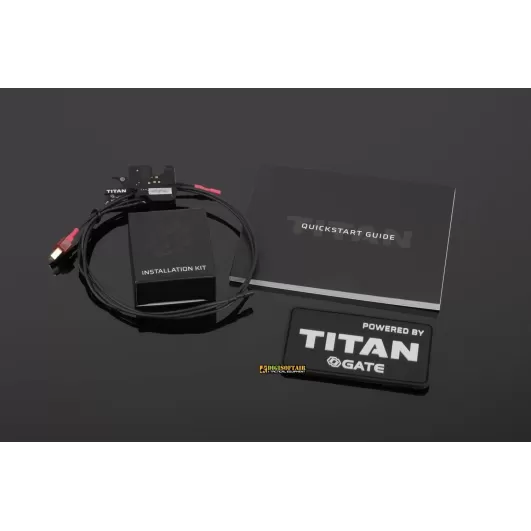

Usb-Link and Blu-Link not included, the packaging could be that of the basic version, but thanks to Gate's recent corporate policies this version has the firmware already updated to the Expert version, therefore it is sold as the Expert Version
