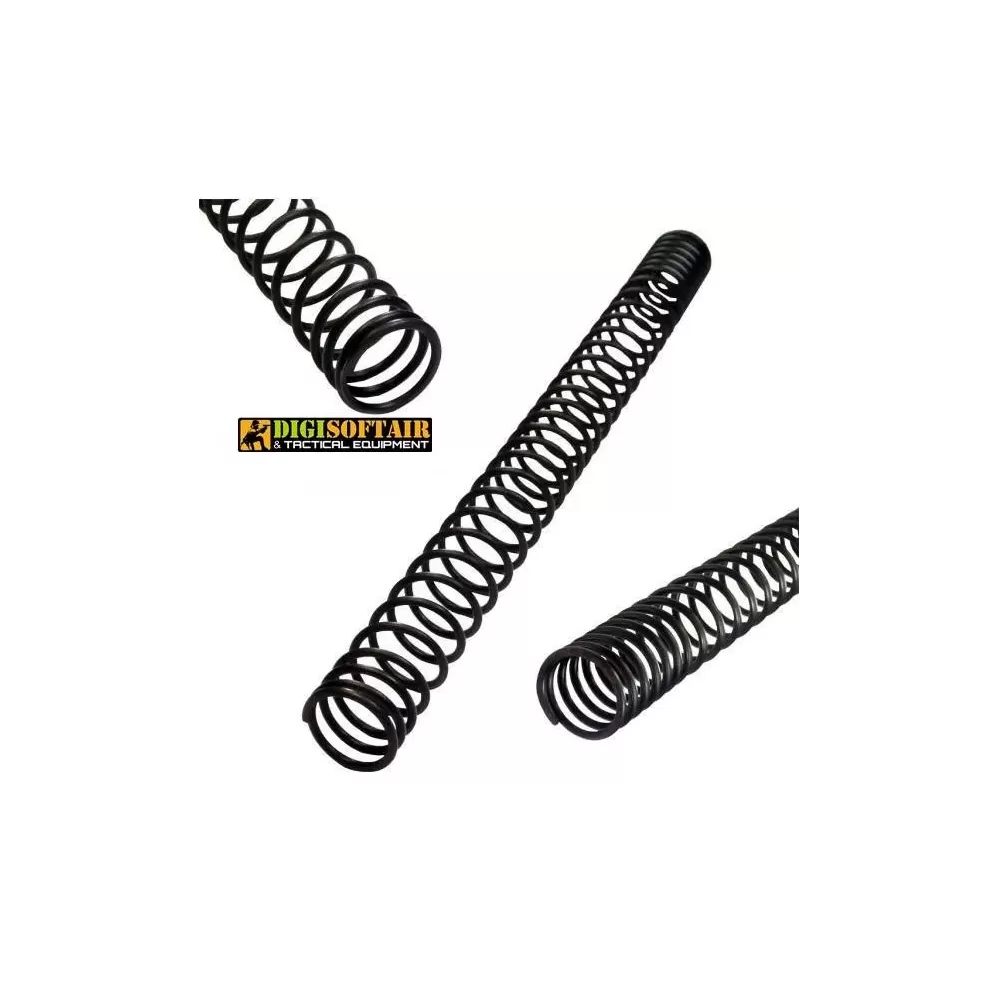

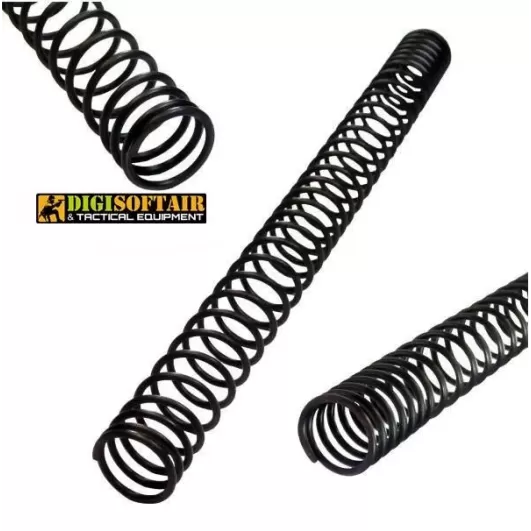

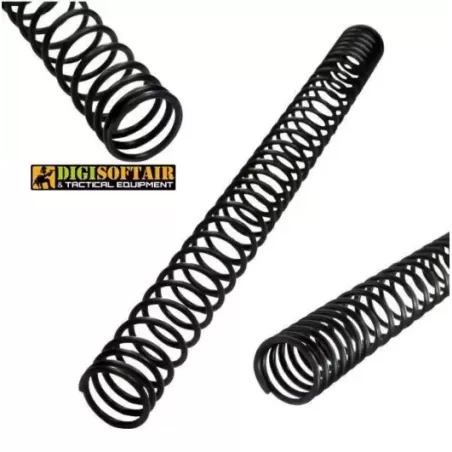

FPS 105 m/s Spring for Airsoft

The FPS 105 m/s spring is designed to provide high and consistent performance in airsoft replicas. This spring is specifically calibrated for barrels of 363 mm length and gearboxes with a type D cylinder, compatible with barrels ranging from 301 to 400 mm. It’s important to note that performance may vary with shorter or longer barrels, potentially requiring a stiffer or softer spring to meet specific needs.

Technical Features:

• Material: Made from blued and pre-tempered carbon steel wire with added silicon and chromium EN10270 / 2, ensuring optimal resistance and durability.
• Stabilization: The spring is heat-treated at 400°C for 30 minutes immediately after formation, optimizing its lifespan.
• Design: Features variable pitch coils in the central and contact areas with the spring guide, and end grinding for optimal performance during compression.

Dimensions:

• Length: 170 mm
• Outer Diameter: 14.30 mm

Usage Recommendations:

• Compatibility: Suitable for barrels ranging from 301 to 400 mm and gearboxes with a type D cylinder.
• Additional Performance: Consider an increase in performance of approximately 2.5 m/s for each bearing used in the spring guide and piston head.

The FPS spring is 100% Made in Italy, produced in collaboration with industry-leading companies to ensure excellent quality standards. It is recommended to use this spring in conjunction with bearing spring guides and piston heads to ensure maximum performance and long-lasting durability.

Warnings:

• Keep out of reach of children.
• Product intended exclusively for use with airsoft replicas.
• Installation must be carried out by qualified personnel.
• Always check compatibility with your replica before installation.
• Do not modify or alter the component.
• Store in a dry place, away from heat sources and moisture.
• Use in accordance with applicable regulations.
