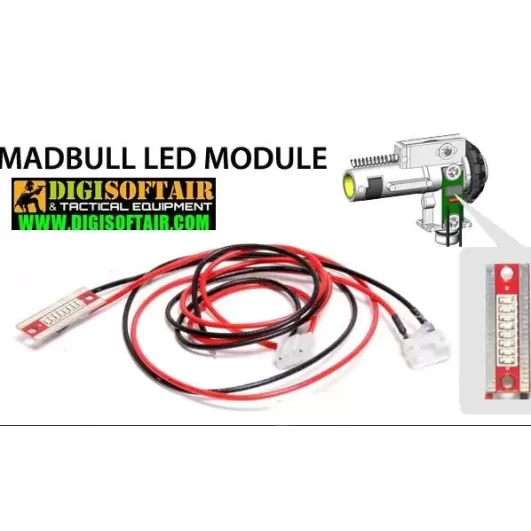

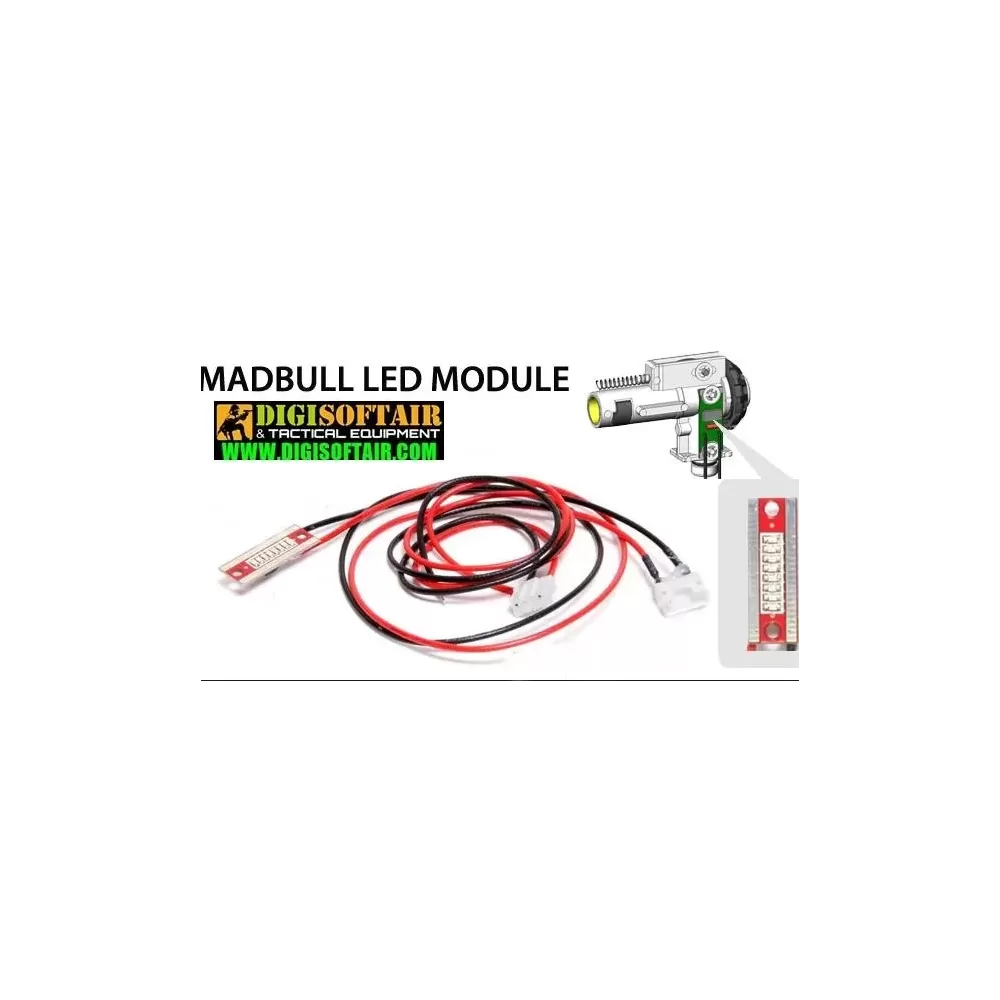

The Madbull LED Module is designed to convert the Madbull Ultimate Hop Up chamber into a fully integrated tracer unit, eliminating the need for an external barrel-mounted tracer. It is an ideal upgrade for players who want to keep their rifle compact while enjoying visible tracer BBs during low-light and CQB games.

Equipped with 8 high-output blue SMD LEDs, the module illuminates tracer BBs as they pass through the hop-up chamber, creating a bright tracer effect without increasing the rifle's overall length. It is designed exclusively for the Madbull Ultimate Hop Up Chamber and is not compatible with other hop-up units.

Powered directly from the AEG battery, the module consumes only 1 Watt while offering an LED lifespan exceeding 10,000 hours. Once connected, the unit remains powered until disconnected from the battery.

Technical Features

• Brand: Madbull
• Designed for Madbull Ultimate Hop Up Chamber
• Integrated tracer module
• 8 Blue SMD LEDs
• Power consumption: 1 W
• Operating voltage: 7.5-12.6 V
• Powered by AEG battery
• LED life: over 10,000 hours
• Internal installation
• No increase in barrel length
• Compatible with 6 mm tracer BBs
• Approximate weight: 20 g

Package Includes

• Madbull LED Module
• Connection wiring

Instructions for Use

• Install only on a compatible Madbull Ultimate Hop Up chamber.
• Connect to the AEG battery.
• Use only 6 mm tracer BBs.
• Disconnect the battery after use.
• Periodically inspect the wiring.

Safety Warnings

• Compatible only with the Madbull Ultimate Hop Up chamber.
• Operate only between 7.5 V and 12.6 V.
• Do not short-circuit the wiring.
• Do not modify or tamper with the product.
• Keep away from water and moisture.
• Installation is recommended for experienced users.
• Keep out of reach of children.

The Madbull LED Module provides an elegant internal tracer solution, allowing compact rifle builds while delivering excellent tracer performance and long-lasting reliability.
Hop-up chamber not included
