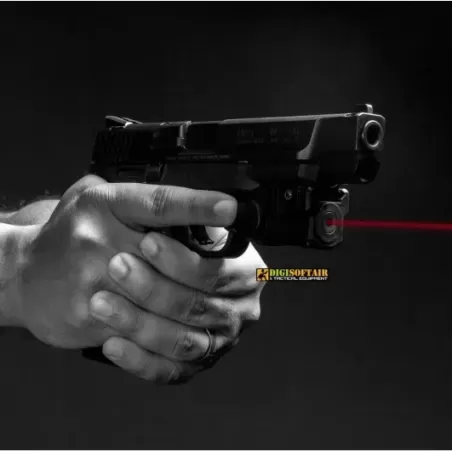

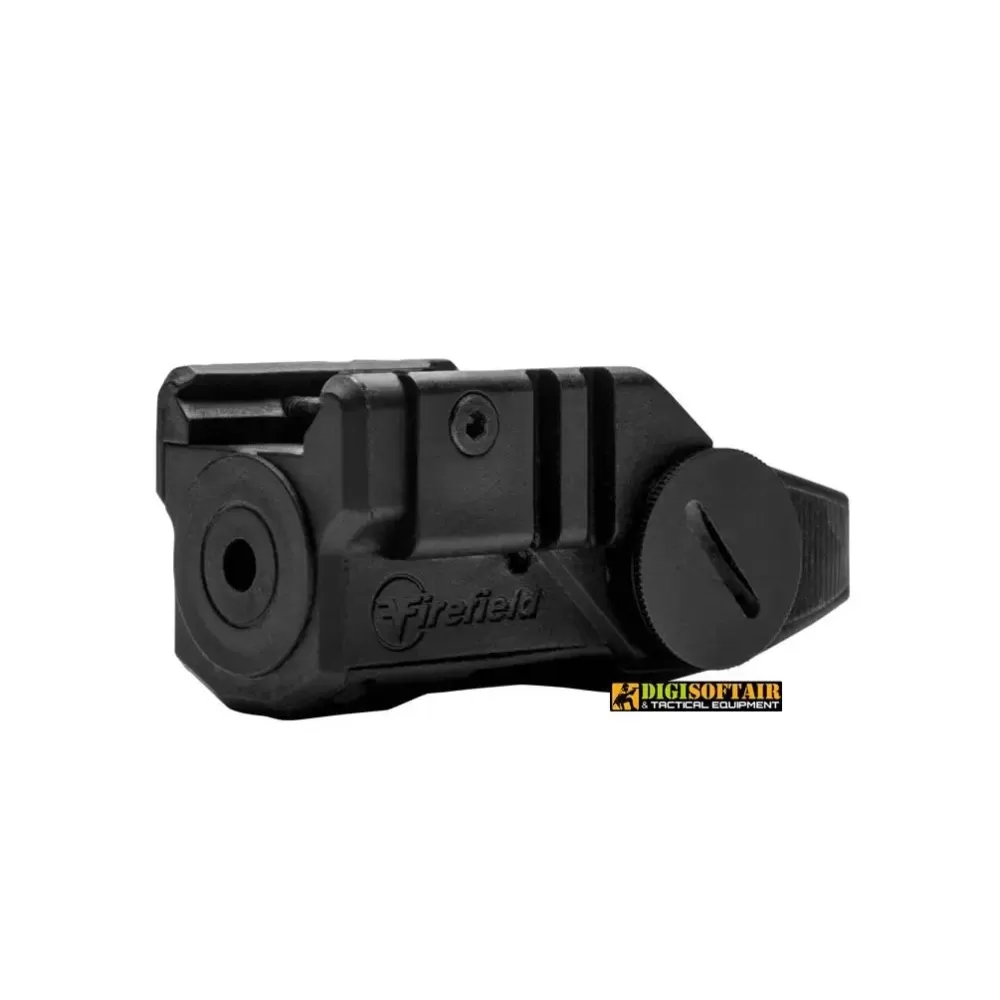

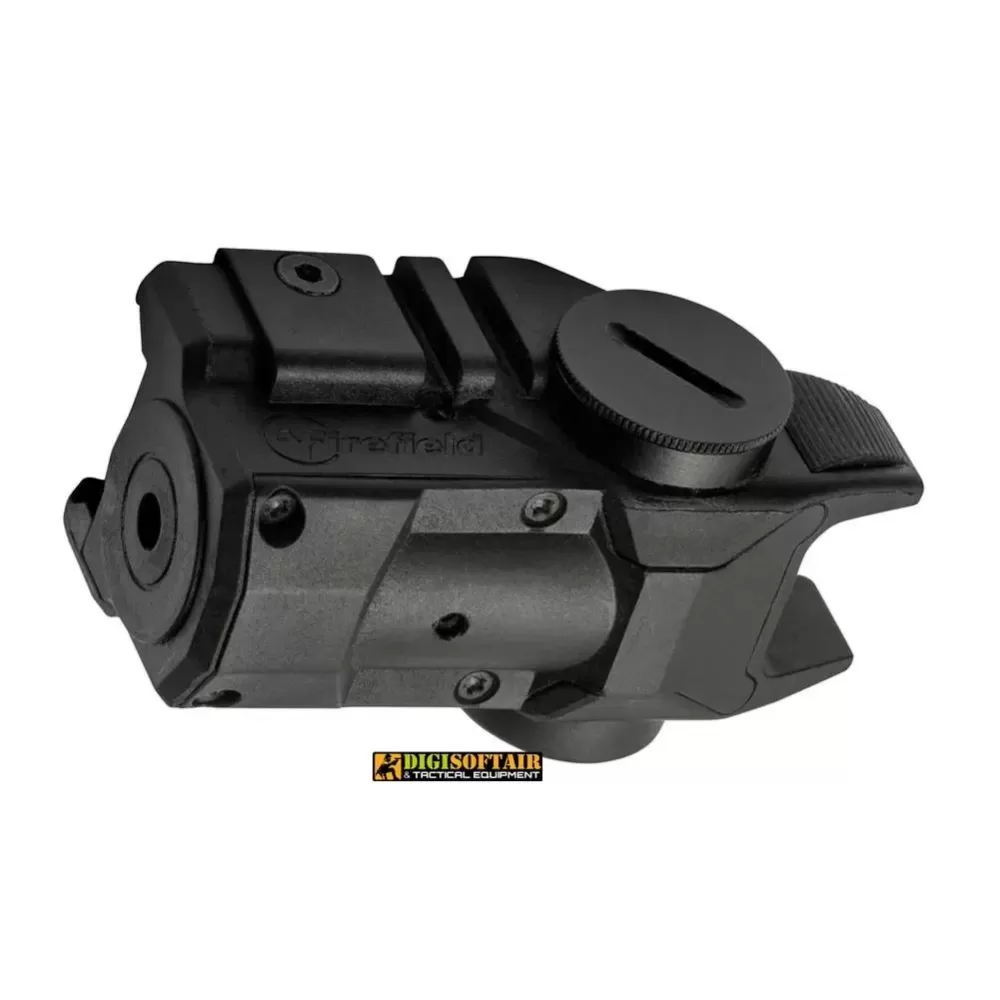

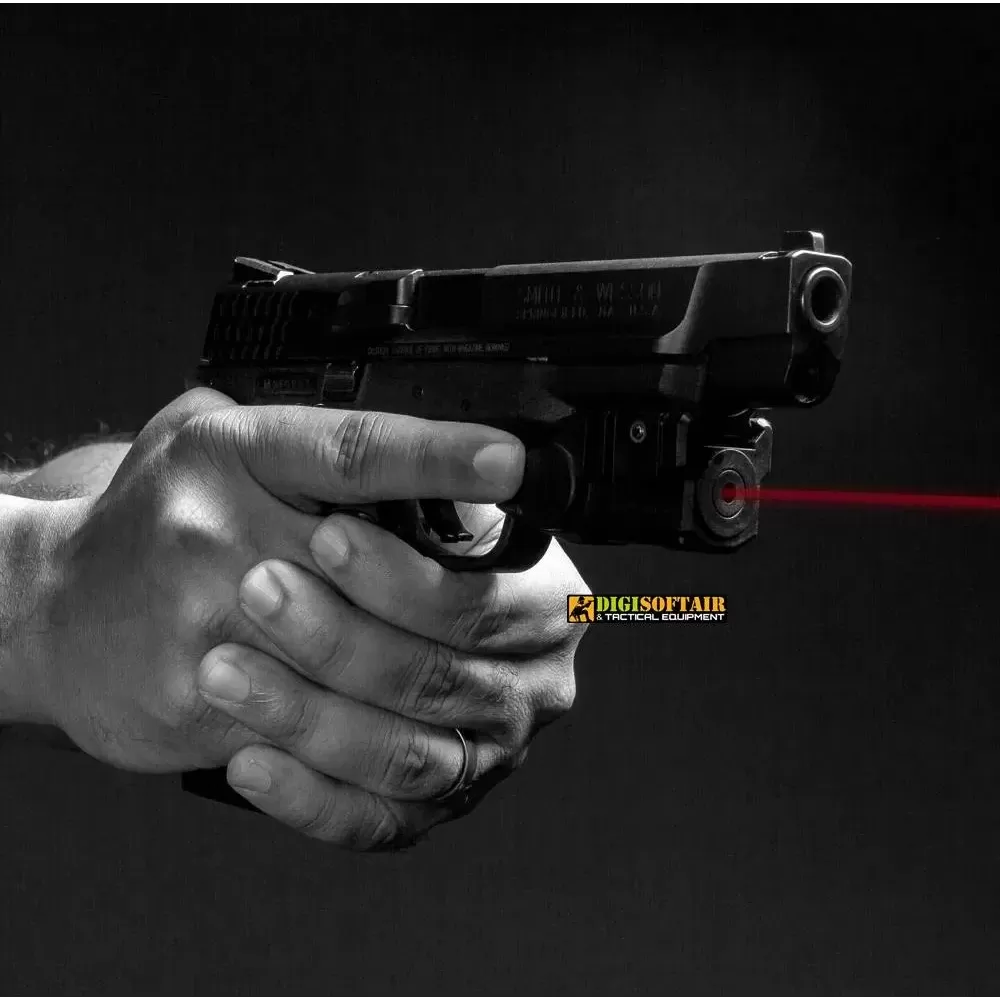

The BattleTek Red Laser Sight is a lightweight, compact laser module designed for tactical and training platforms. Constructed in glass-filled nylon for strength and low weight, it features a 650 nm red laser with output under 5 mW (Class IIIA), precise adjustment for windage and elevation, and quick mounting to Weaver rails. Built for operational use, the unit provides IP55 water resistance, shock protection, ambidextrous on/off control and selectable continuous or pulse modes.
Concrete user benefits: low profile that preserves weapon handling, solid night-time visibility, long battery life for extended sessions, and robust construction for demanding conditions.

Technical features & specifications

Laser type: red, Class IIIA

Wavelength: 650 nm

Output power: < 5 mW

Estimated daytime visibility: ~20 yd (≈18 m)

Estimated nighttime visibility: up to 300 yd (≈274 m)

Dot size (at 50 yd): ~2 in

Battery type: CR2 (3 V) — continuous runtime approx. 19 hours; pulse mode extends runtime

Water resistance / rating: IP55

Recoil resistance: up to .45 ACP

Mount: Weaver / Picatinny

Adjustments: continuous windage and elevation adjustment

Body material: glass-filled nylon

Operating temperature: -20 °C to +45 °C

Dimensions (approx.): length ~61 mm × width ~33 mm × height ~27 mm

Weight (approx.): ~1.9 oz (≈54 g)

Package contents

1 LASER SIGHT

Warnings & maintenance

Do not tamper with or open sealed components: unauthorized modification can void sealing, safety and warranty.

Never point the laser at eyes or reflective surfaces; Class IIIA lasers can cause eye injury.

Storage: keep dry and away from prolonged heat and direct sunlight.

Keep out of reach of children.

Batteries: use only specified CR2 battery type, observe correct polarity when inserting, replace battery only with unit powered off; dispose of batteries according to local regulations. Remove battery for long-term storage.

Removable parts / mounting: fit securely to undamaged rails and verify locking mechanism before use; mounting or maintenance should follow manufacturer instructions to avoid personal risk.

Maintenance: clean optics with a soft cloth and mild cleaners; avoid solvents that may damage seals or coatings. Inspect periodically for wear or damage.

These warnings comply with the GPSR Regulation and applicable Italian law.
