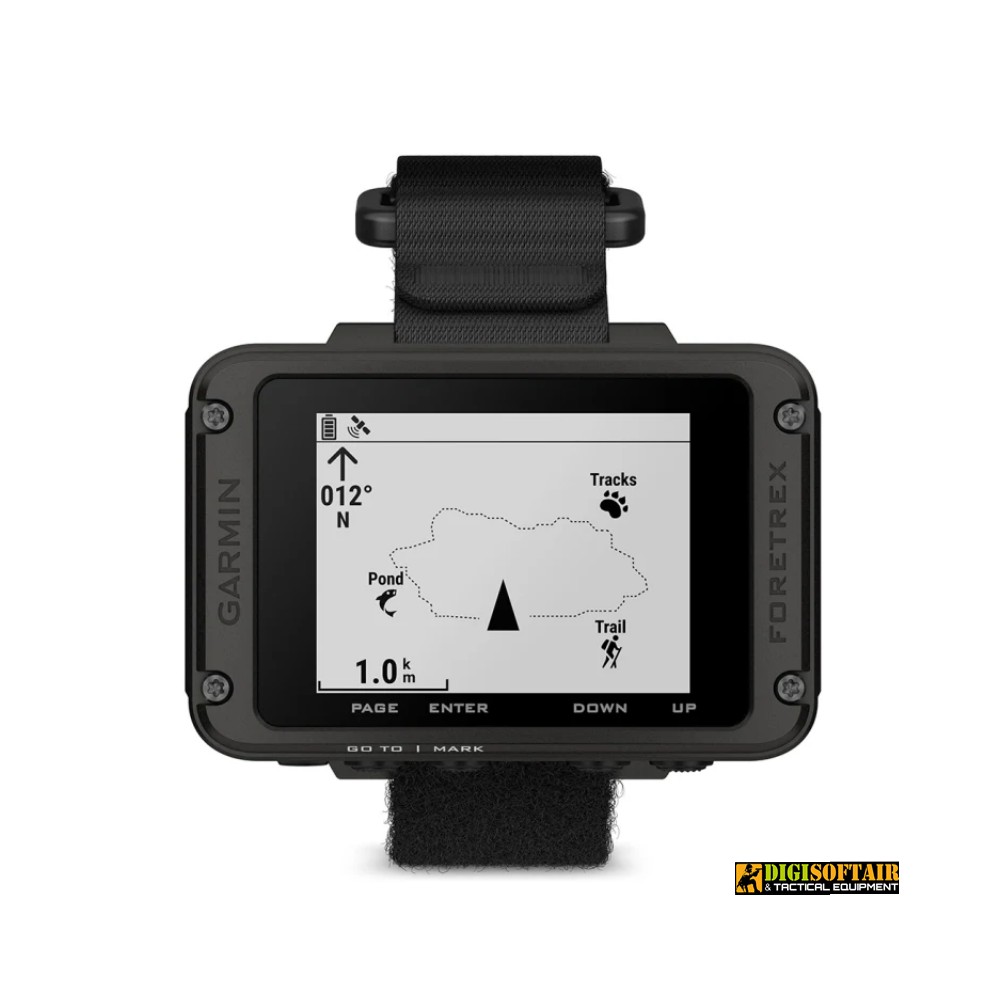

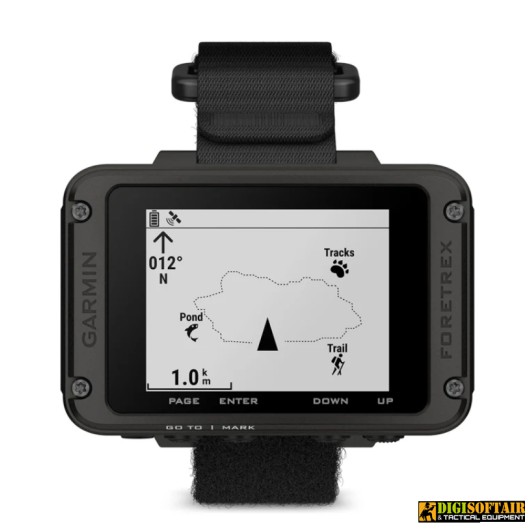

Foretrex® 801 – multiband/multi-GNSS wrist-worn GPS navigator with tactical sensors
EVERYTHING IS POSSIBLE. Built for operators and extreme adventurers, the Foretrex 801 delivers wrist-worn precision navigation, a daylight-readable monochrome display, and advanced tactical features—ideal for missions, expeditions, and harsh-environment activities.

Key features

MULTI-BAND GNSS: GPS, GLONASS, Galileo, QZSS, IRNSS on multiple frequencies for fast, reliable fixes in challenging conditions

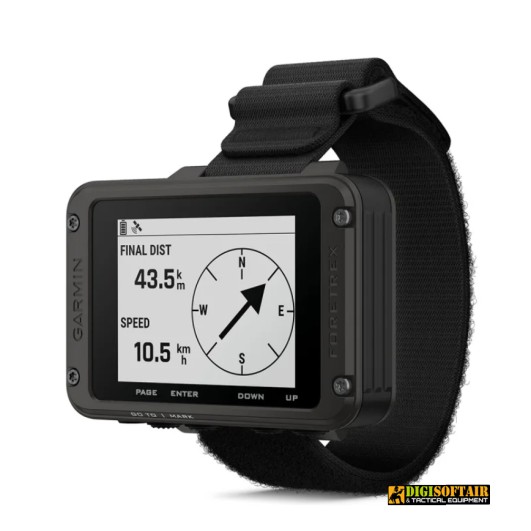

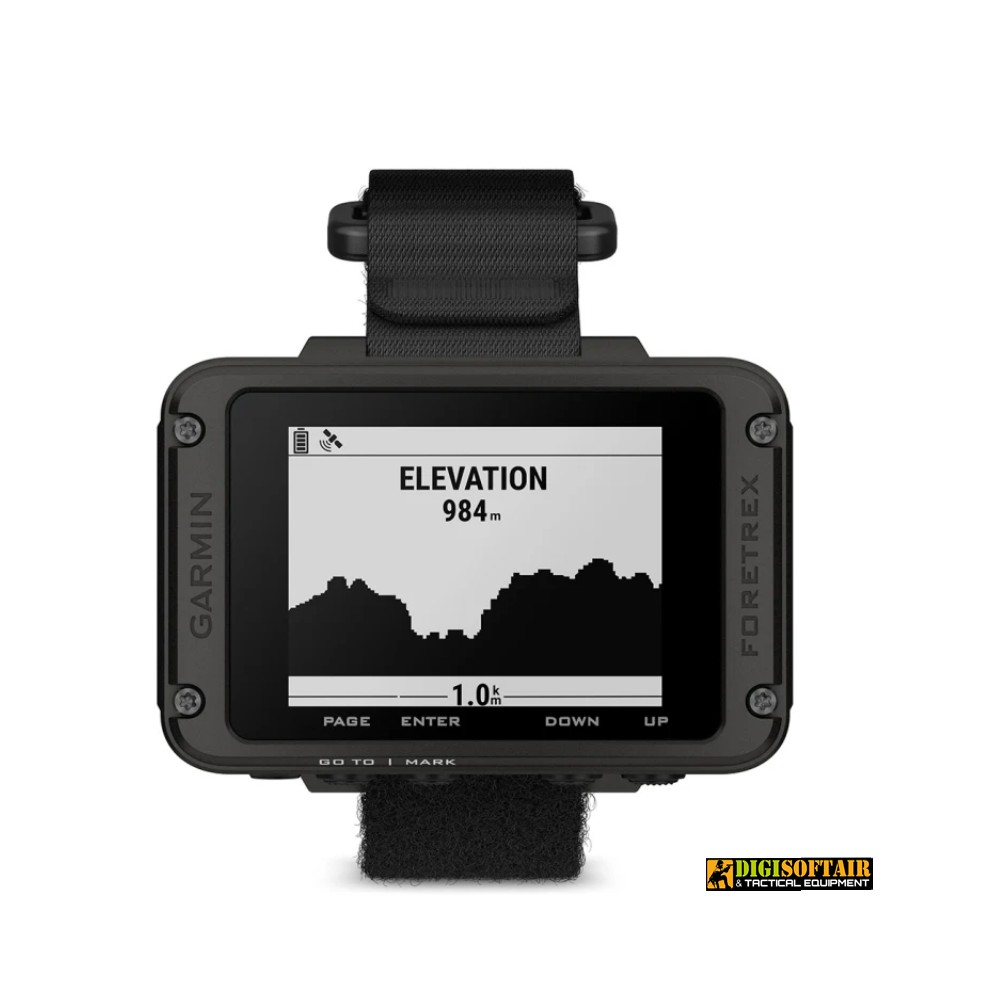

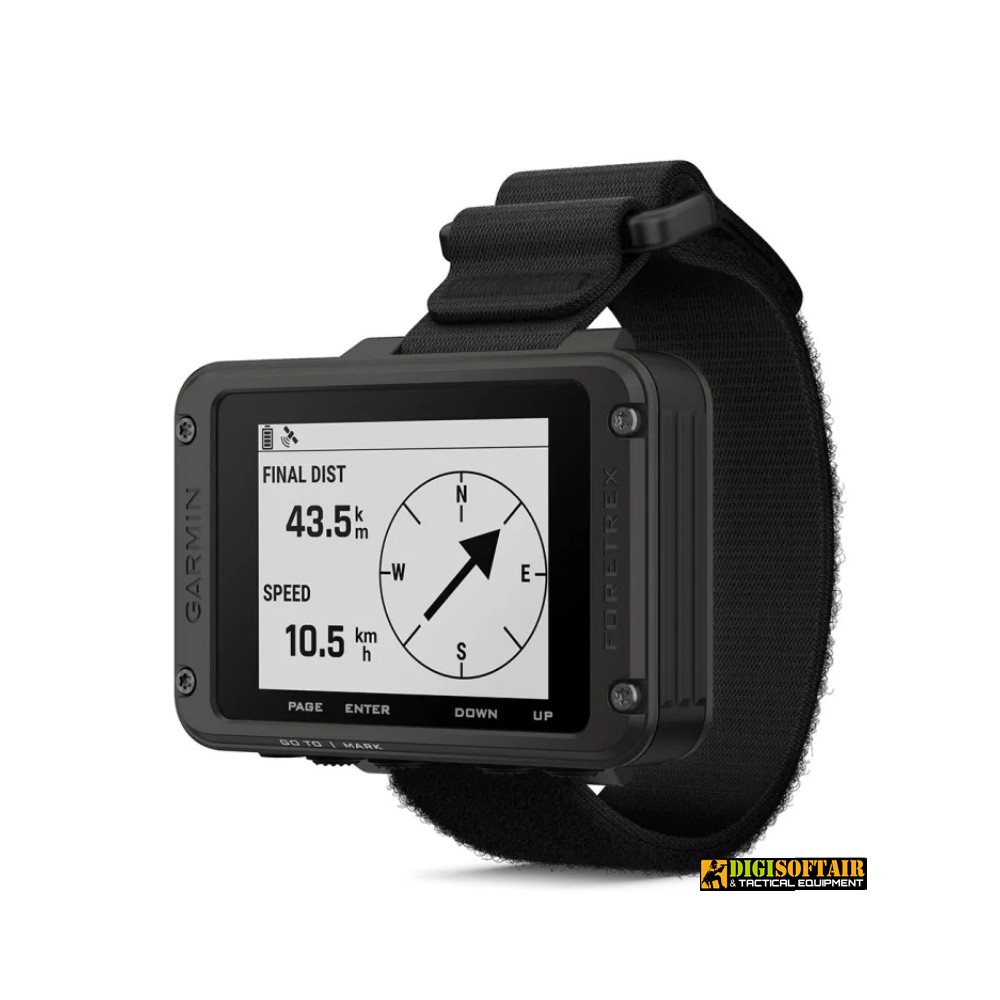

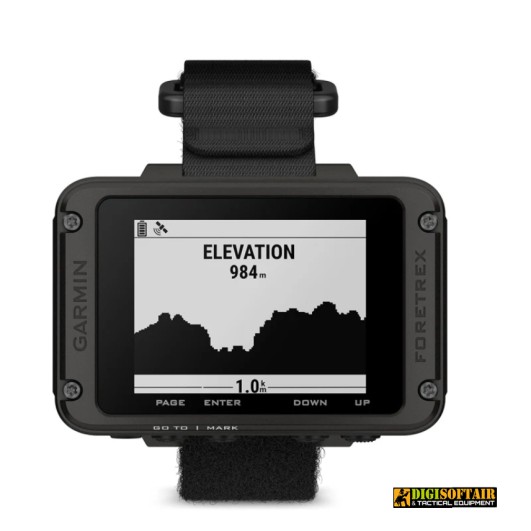

ABC NAVIGATION SENSORS: barometric altimeter, 3-axis tilt-compensated electronic compass, and accelerometer for terrain analysis

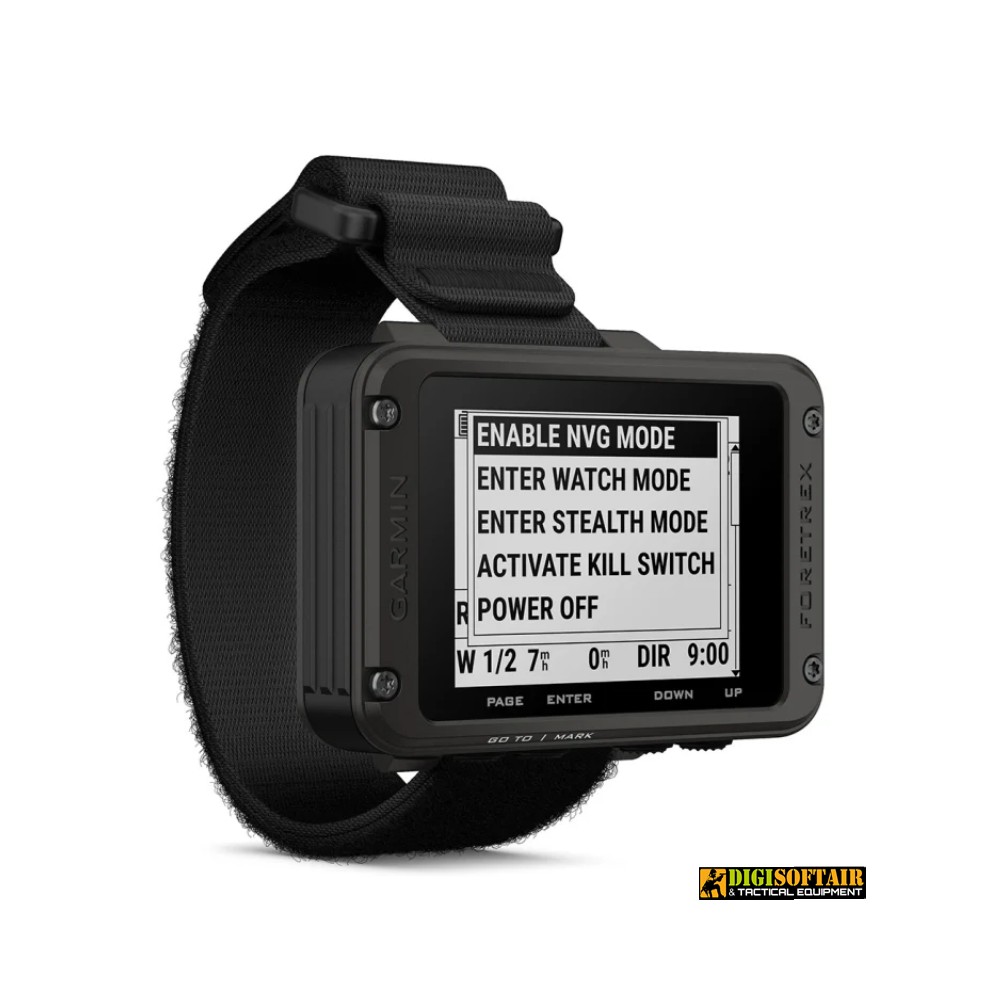

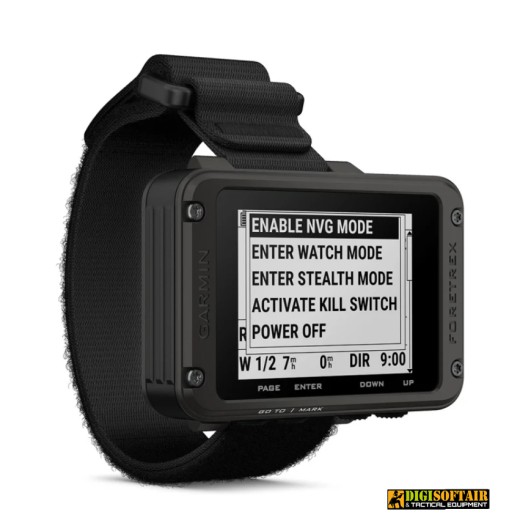

STEALTH MODE & KILL SWITCH: disable data logging and wireless connections; instant memory wipe for sensitive operations

NIGHT VISION COMPATIBILITY: display and backlight optimized for IR night-vision goggles

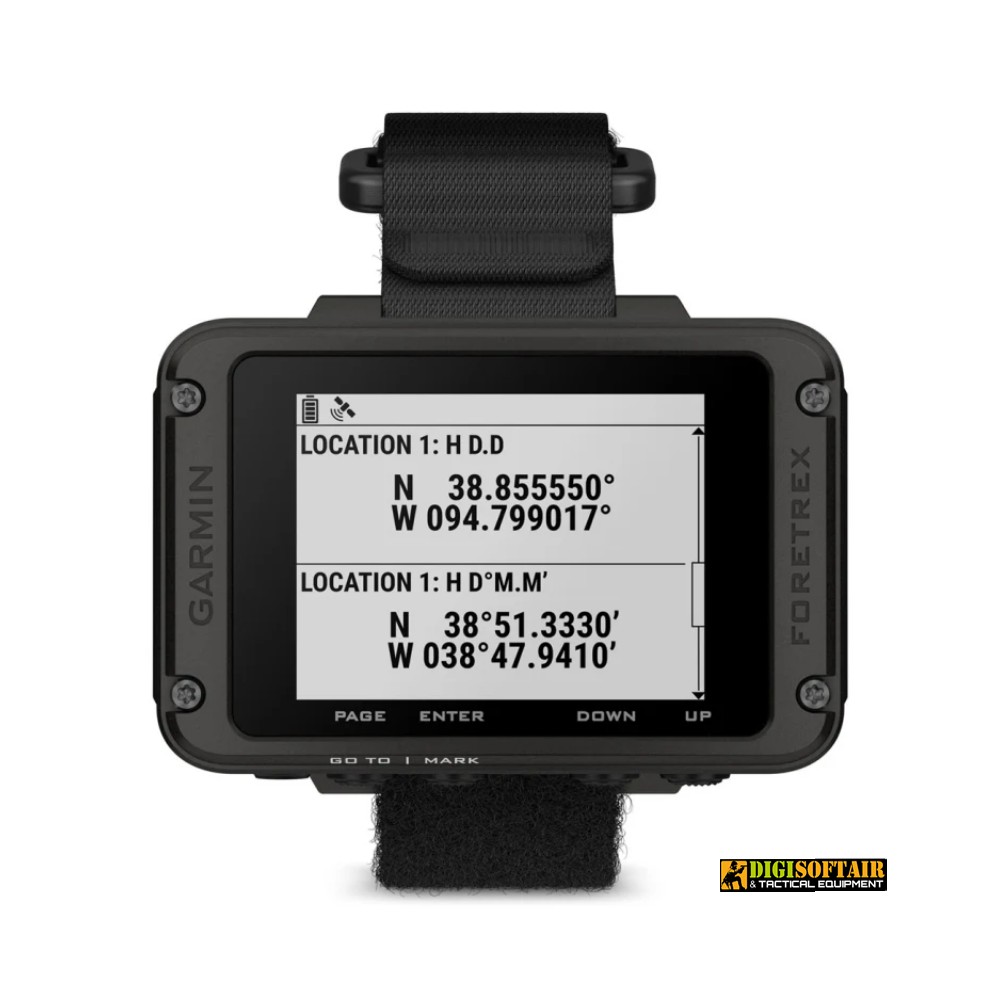

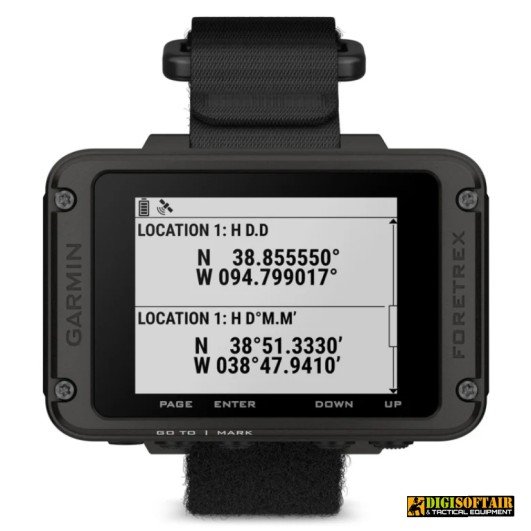

PLANNED NAVIGATION: Jumpmaster mode and dual-grid coordinates for high-altitude insertions and tactical positioning

SMART CONNECTIVITY: Smart Notifications via Bluetooth®; Garmin Connect™ Mobile; inReach® satellite communicator integration

EXTENDED BATTERY LIFE: up to 100 h GPS mode, 1 000 h expedition mode with 2 replaceable AAA batteries

Technical specifications

Display: 2.2″ MIP monochrome, 320 × 240 pixels

Lens material: durable acrylic

Dimensions: 7.4 × 4.3 × 2.3 cm; weight: 108 g with batteries

Waterproof rating: IPX7; MIL-STD-810 certified (shock, temperature, water)

Power: 2 × AAA batteries (not included); NiMH or lithium recommended

Sensors: GPS, GLONASS, Galileo, multi-frequency GNSS; 3-axis compass; barometric altimeter; on-move GPS compass

Memory & storage: 500 waypoints; 500 routes; 100 tracks; 10 000-point track log; 50 saved courses

Interface: USB-C high-speed; NMEA 0183 compatible

Connectivity: Bluetooth®, ANT+®

Package contents

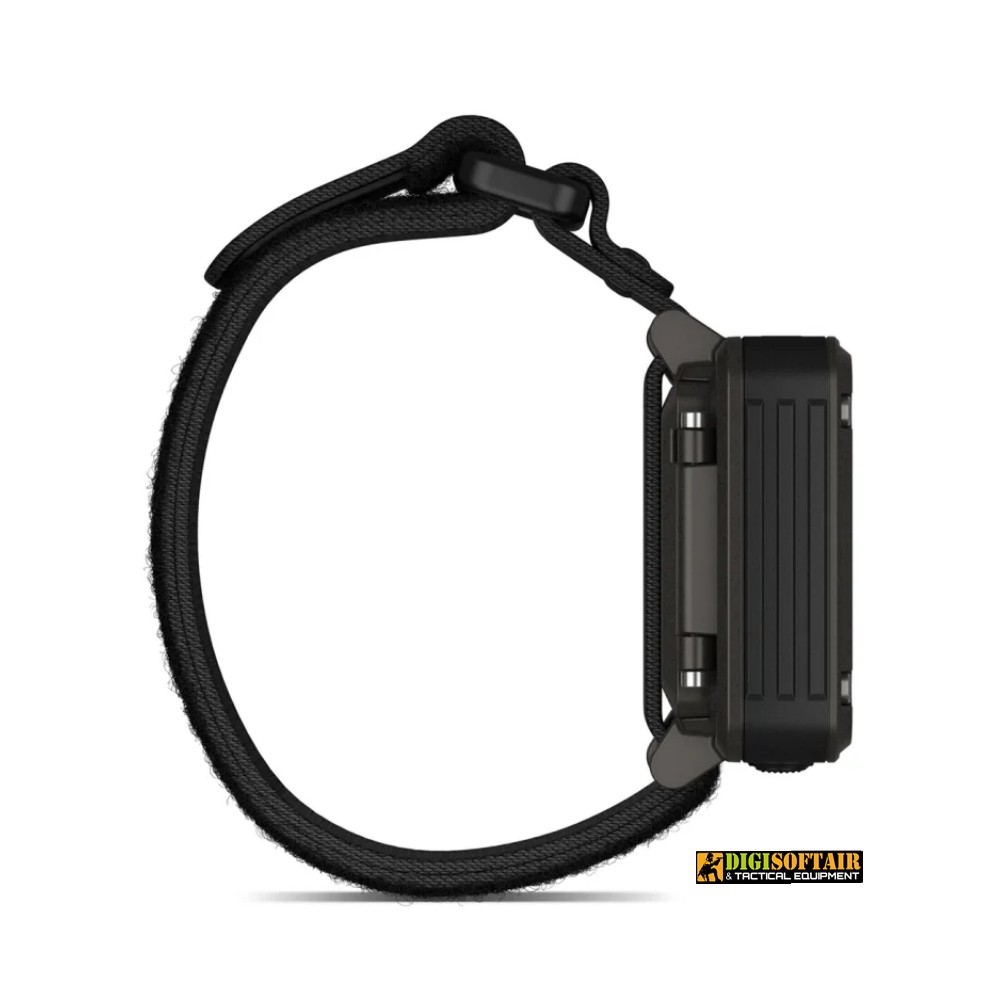

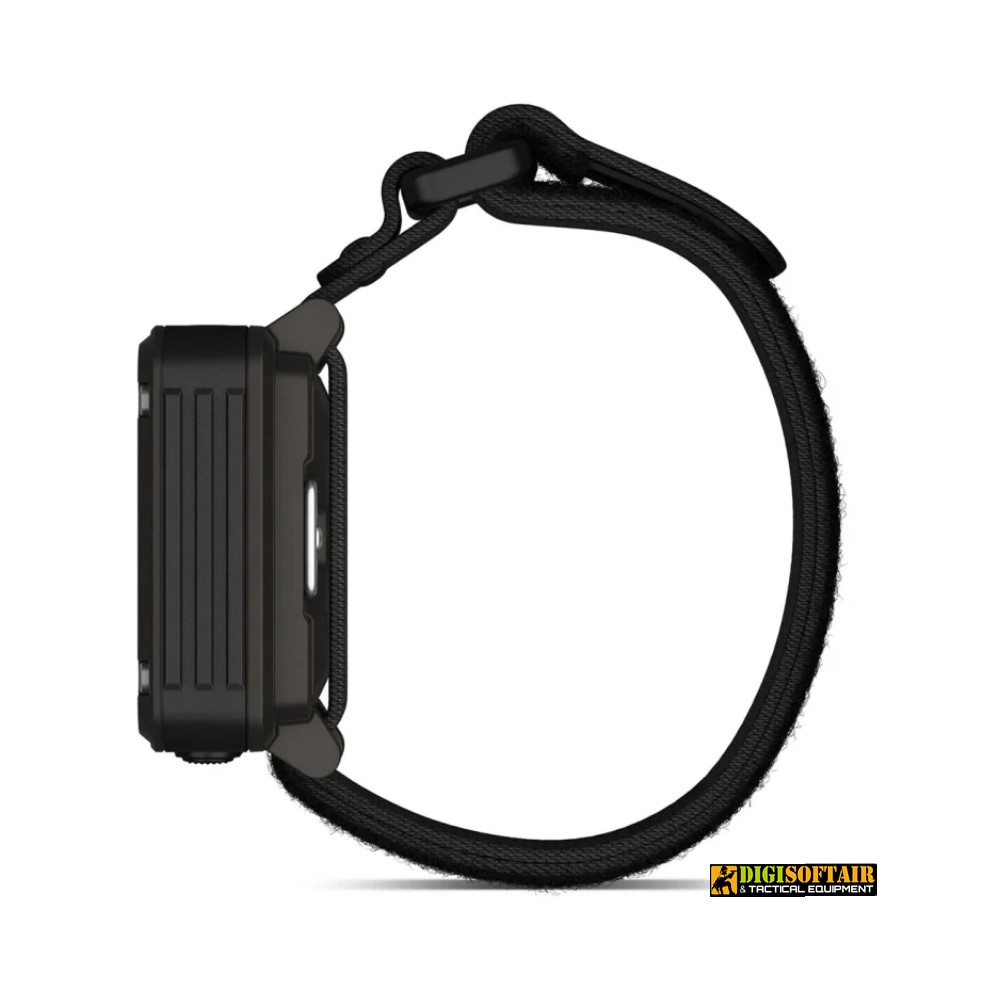

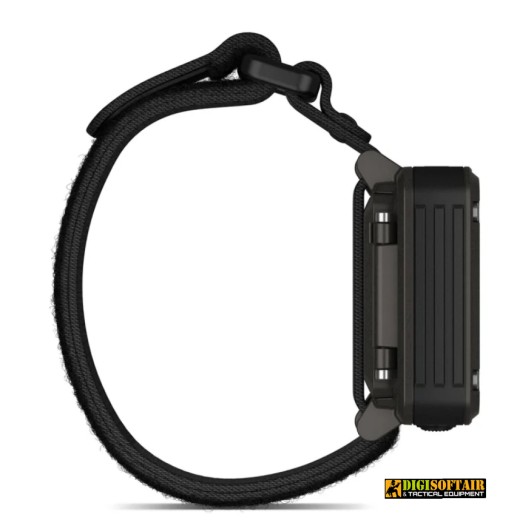

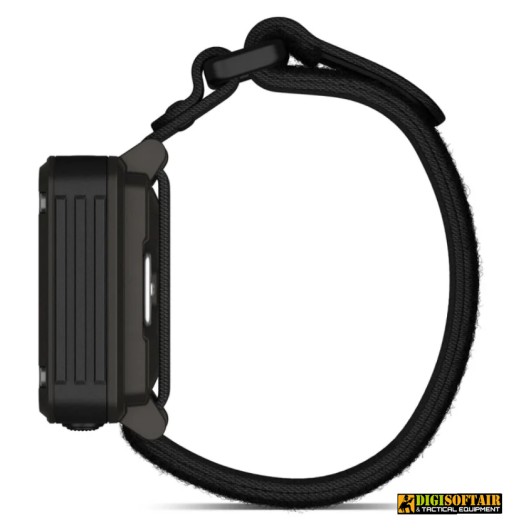

Foretrex® 801 with hook-and-loop wrist strap

USB-C cable for charging and data transfer

Quick-start guide and safety manual

Wear a tactical-grade, mission-ready navigation system that stays by your side—no matter how extreme the environment.

Warnings & compliance
For outdoor and operational use only. Handle with care; avoid strong impacts and excessive button pressure. Keep out of reach of children. Do not expose to temperatures above +60 °C, open flames, or prolonged humidity. Do not open or modify the unit; for service, consult authorized centers. Compliant with GPSR Regulation and Italian standards for portable electronic devices.
