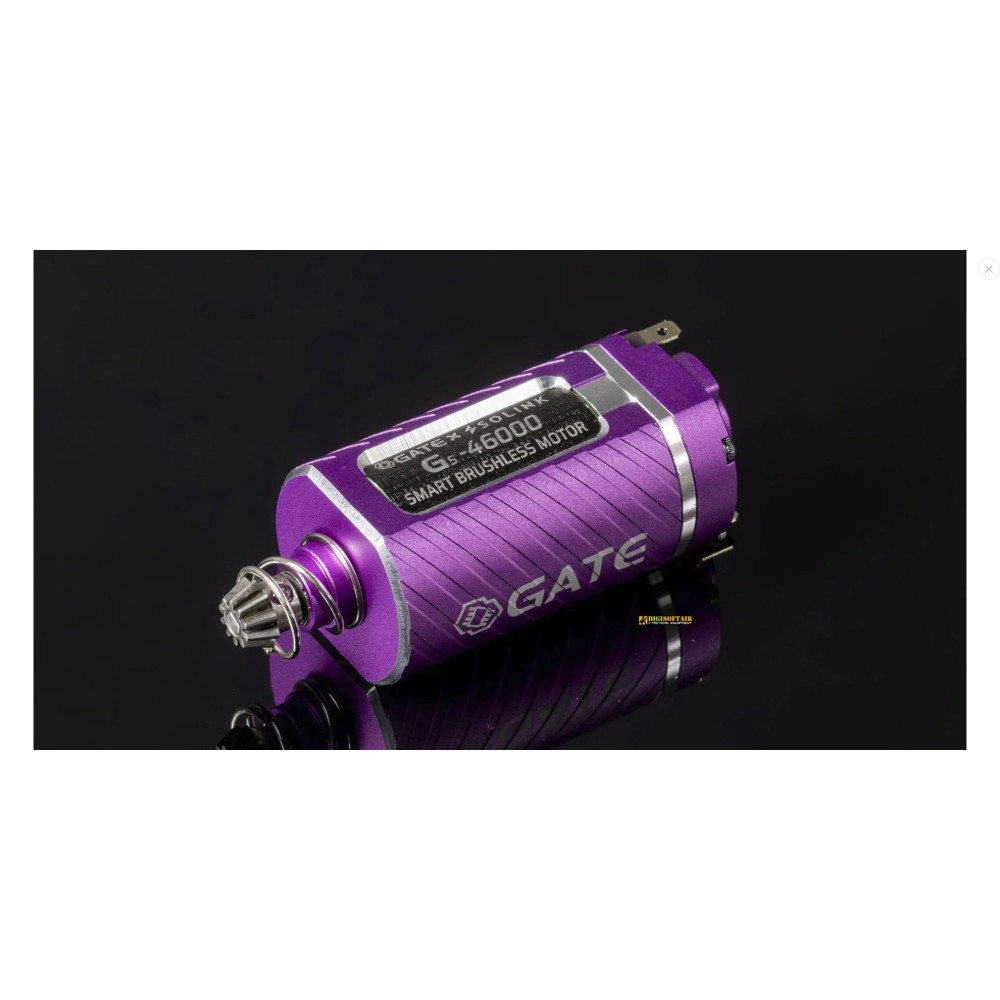

The GATE G5 Plus Smart Brushless Motor in the Short (V3) version is GATE’s smart brushless motor designed to fit into the GATE ecosystem with ASTER II Bluetooth and TITAN II Bluetooth. The official page clearly shows the two versions, Long (V2) and Short (V3); at the same time, the compatibility section on the same page lists standard V2 gearboxes and several V2 ETUs, so it is worth double-checking your actual replica setup before buying.

Its main strength is app-based control: through the GCS App, the motor speed and torque can be adjusted even during gameplay, with a declared range of 10,000–46,000 RPM. GATE presents it as the world’s first brushless motor programmable via app, with precise parameter tuning and immediate response thanks to Soft Start and Fast Start.

On the engineering side, the official page highlights an integrated anti-reversal mechanism, a highly effective braking system, a D-type pinion gear, durable motor connectors, and a CNC-machined integrated motor shaft. GATE also recommends keeping the standard anti-reversal latch in the gearbox as a backup and to reduce wear over time.

For the 11.1V configuration, GATE lists 45,800 RPM no-load speed, 40,987 RPM at maximum efficiency, 22,950 RPM at maximum output, up to 519 W output, and a maximum declared torque of 2334 g/cm. The dimensions are 88.5 × 29.5 × 25 mm, and the finished weight is 141 g.

Technical features

• Version: Short (V3).
• Family: GATE G5 Plus Smart Brushless Motor [Long & Short Version].
• Control via GCS App.
• Adjustable speed and torque.
• Declared speed range: 10,000–46,000 RPM.
• Integrated anti-reversal mechanism.
• Highly effective braking system.
• D-type pinion gear.
• CNC-machined integrated motor shaft.
• Supply voltage range: 6–16.8 V.
• Dimensions: 88.5 × 29.5 × 25 mm.
• Finished weight: 141 g.
• Compatibility stated on the page: standard V2 gearboxes and multiple V2 ETUs.

Package contents

• Not specified in the consulted page.

How to use

• Install the motor only on compatible replicas and verify the real gearbox fit before buying. The page shows the Short (V3) version but also lists standard V2 gearbox compatibility, so pre-installation verification matters.
• Configure the motor through the GCS App with ASTER II Bluetooth or TITAN II Bluetooth.
• Use the speed and torque controls to match the replica and gearbox setup.
• Keep in mind that Soft Start, Fast Start, and pre-cocking adjustments affect internal stress and wear.

Safety warnings

• Intended only for airsoft, not for real firearms.
• Do not tamper with or modify the device.
• Installation requires technical skill; incorrect assembly may impair replica performance.
• Use only with compatible components and in compliance with applicable laws.
• Keeping the standard anti-reversal latch in the gearbox, as GATE recommends, helps reduce motor wear over time.

The G5 Short V3 is a strong pick for users who want an advanced brushless motor, app control, and a cleaner, quicker response from their replica, with a much higher level of tuning than typical setups.
