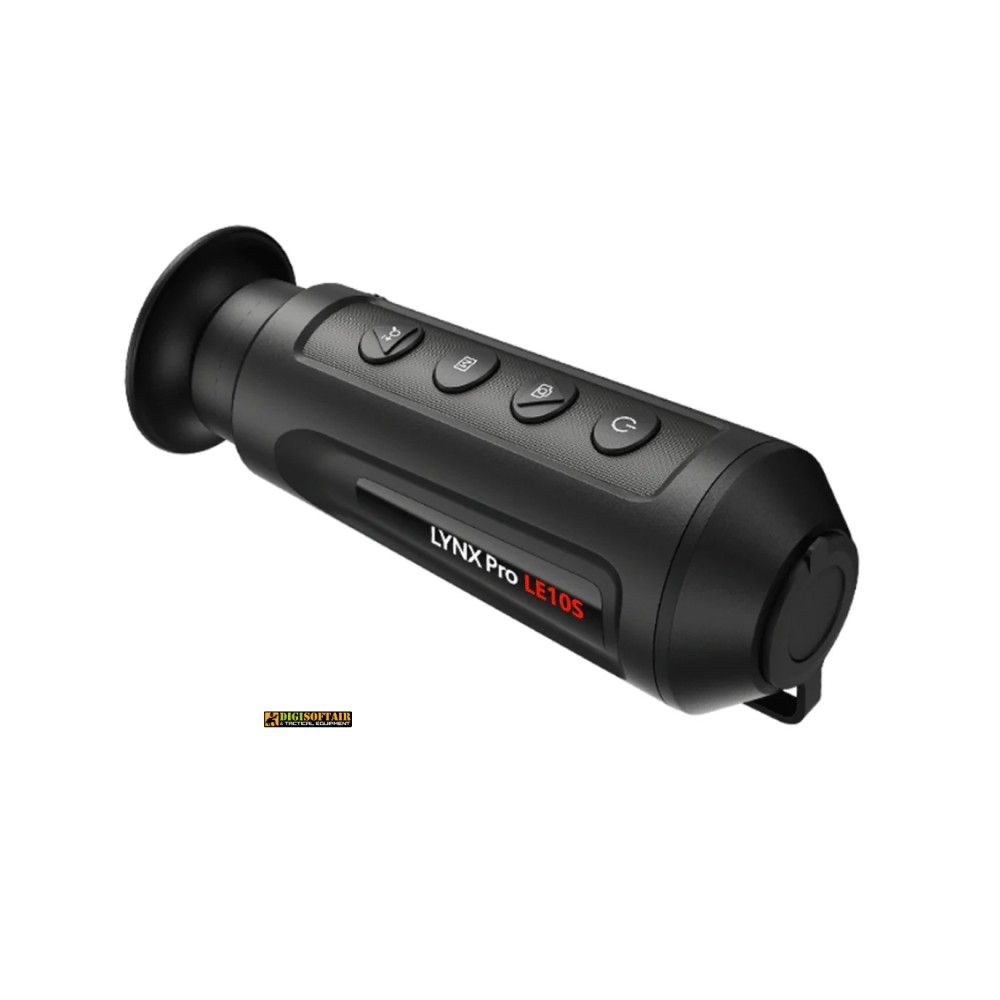

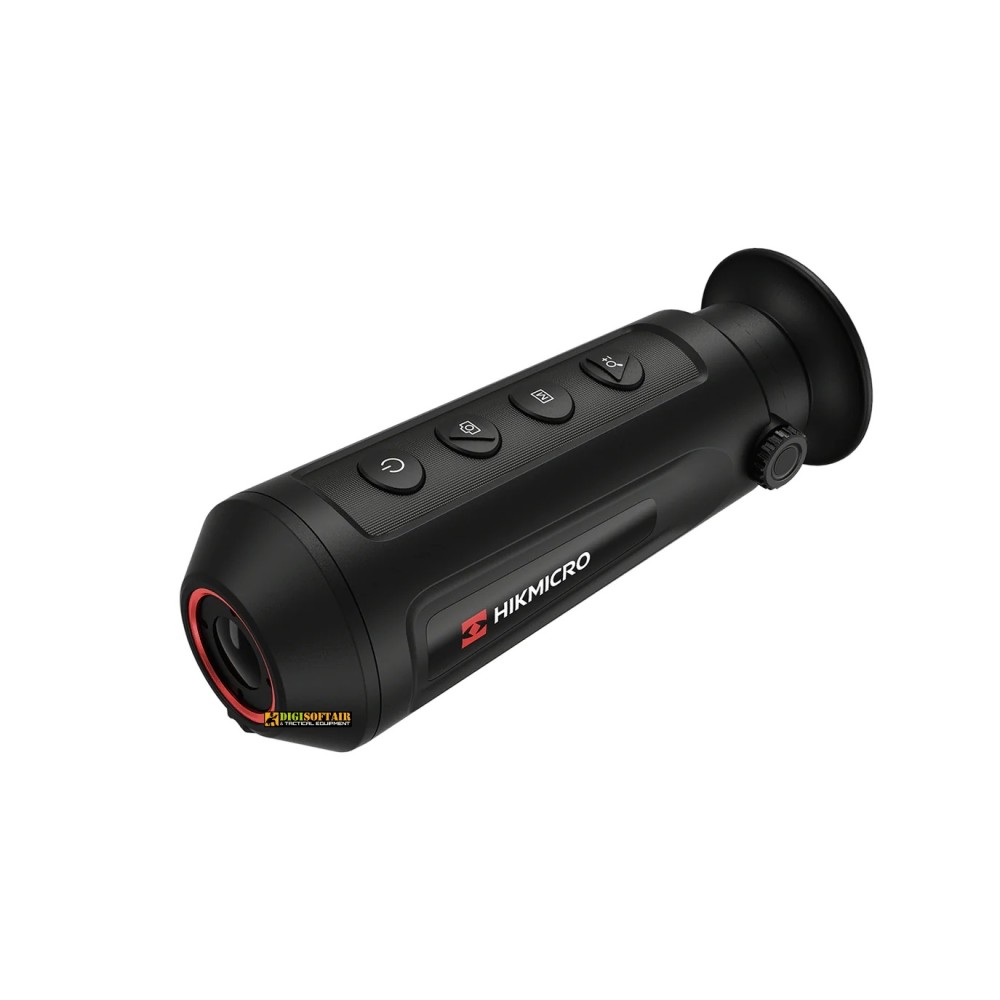

Compact, lightweight, and perfect for outdoor observation: the Lynx Pro LE10S thermal monocular from the LYNX S series delivers sharp images and fast target detection. Its sensitive sensor and bright optics ensure detailed performance even in low-light conditions, while the high-resolution OLED display minimizes eye fatigue during extended use.

Technical specifications

VOx uncooled thermal sensor, 256 × 192 resolution, 12 μm pixel pitch

50 Hz refresh rate for smooth imaging

NETD < 35 mK at 25 °C

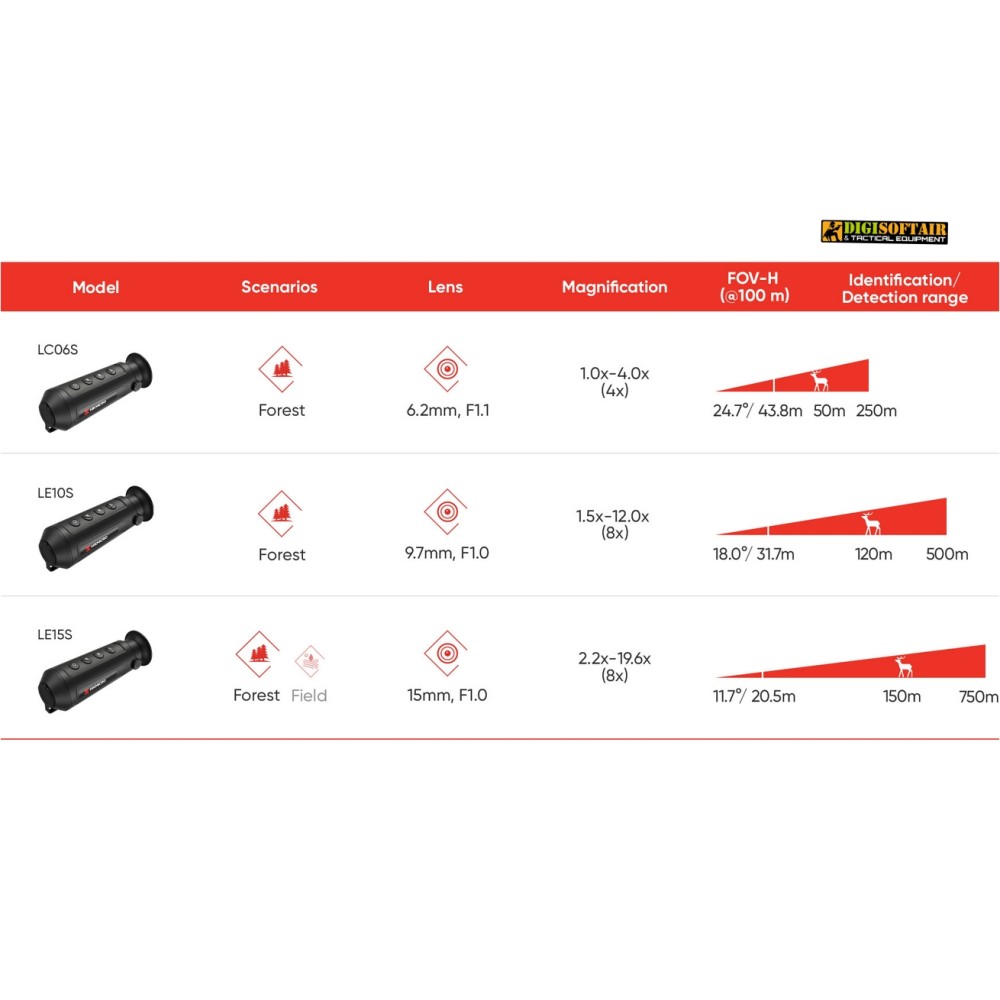

9.7 mm focal length lens, f/1.0 aperture

Field of view: 18.0° × 13.6° (~31.7 × 23.8 m at 100 m)

Detection range for human target (1.7 m): up to ~500 m

Digital zoom from 1.5× to 12.0× (8× total)

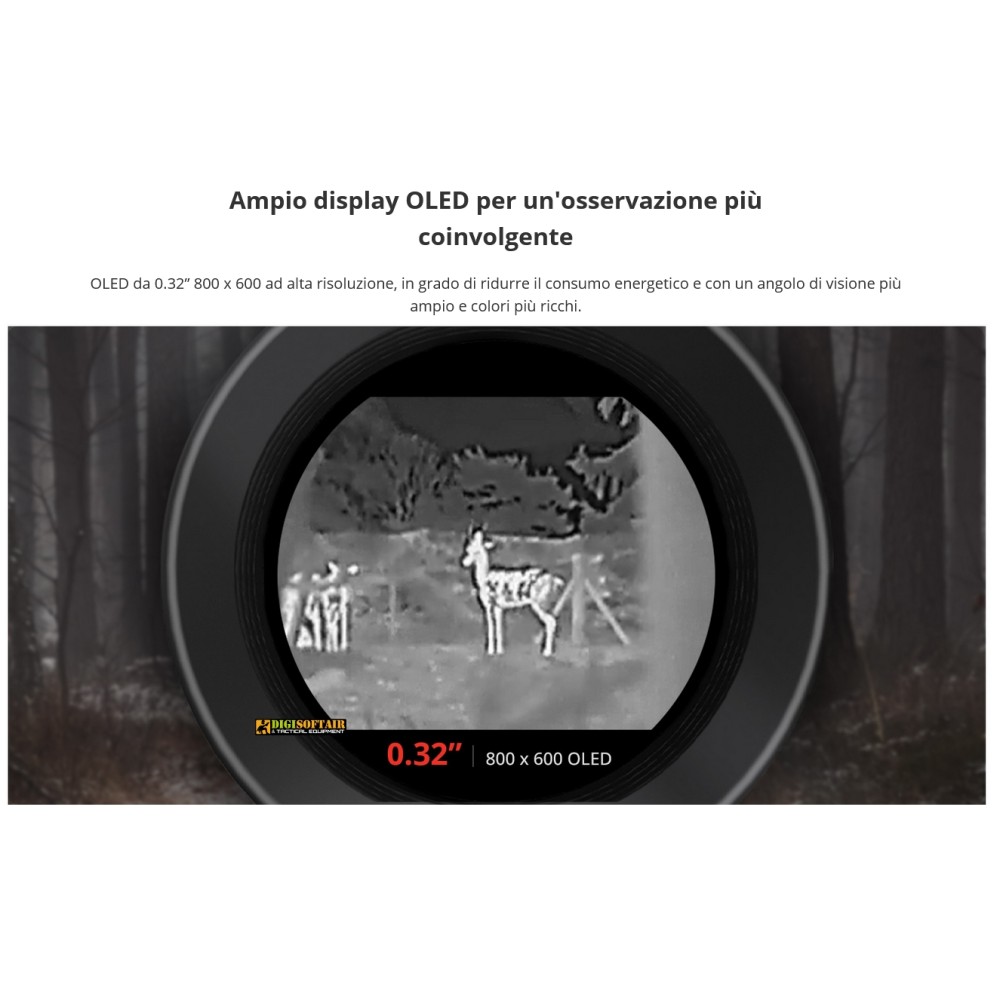

0.32" OLED display, 800 × 600 resolution

IP67 dustproof and waterproof rating

Size: 158.3 × 61 × 57 mm

Weight: approx. 260 g

Operating temperature: −20 °C to +55 °C

Built-in 8 GB storage for photos and videos

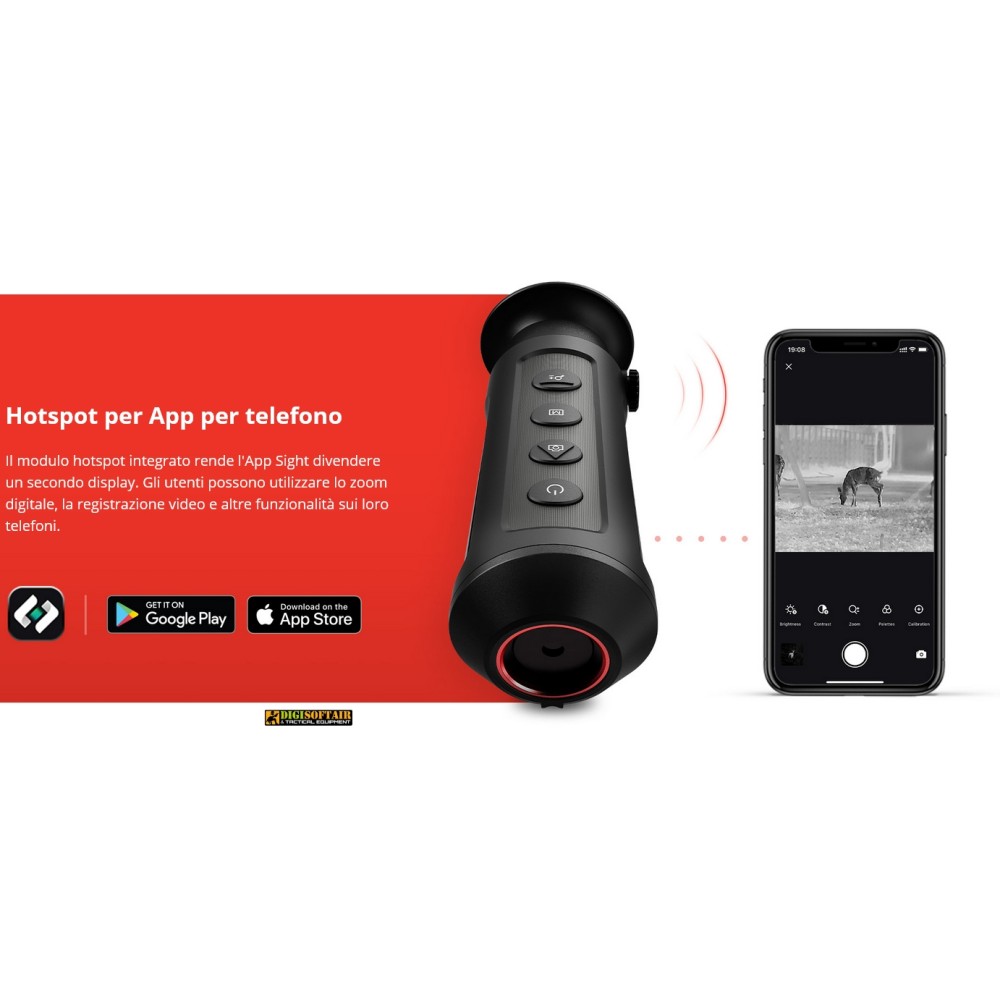

Integrated Wi-Fi hotspot for app connection

Type-C 5 V/2 A port for charging and data transfer

Battery life: approx. 8 h (hotspot off) / 6 h (hotspot on)

Package contents

Lynx Pro LE10S thermal monocular

Integrated rechargeable battery

User manual

USB-C charging cable

Protective case
(contents may vary by distributor)

User benefits

Ultra-portable design with professional thermal performance

Smooth, detailed imaging even in poor visibility

High-definition OLED display for comfortable viewing

Onboard photo and video recording

Fast device connection and external power option

Warnings & usage information (GPSR / Italian regulations compliance)

Keep out of reach of children

Use only batteries and chargers specified by the manufacturer

Avoid impacts, drops, and liquid contact beyond IP67 rating

Clean optics with a soft cloth and appropriate cleaning products

Do not disassemble or modify the device

Dispose of product and batteries according to Italian RAEE regulations

Always check local regulations before using for hunting, surveillance, or recording in public areas
