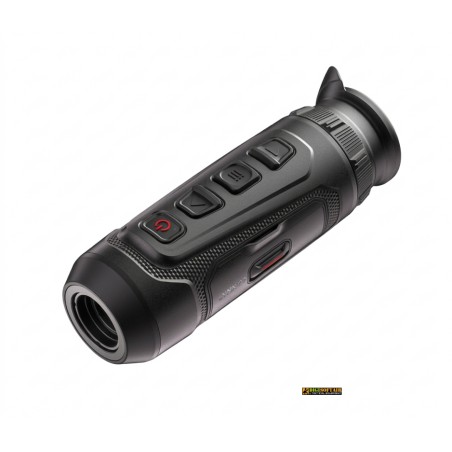

The HIKMICRO LYNX LE15 3.0 is a compact thermal monocular designed for real-world usability: lightweight, fast to deploy, and built to deliver clear thermal information without complexity.

It features a 256×192 VOx sensor (12μm) paired with a 15 mm F1.0 lens, offering a strong balance between field of view and detection capability. Detection reaches up to 750 meters, with base magnification 2.2x expandable to 17.6x digital.

Thermal performance is supported by NETD < 20 mK, HSIS shutterless system, and Image Pro 3.0, ensuring smooth and continuous viewing without noticeable calibration interruptions.

The 0.39" AMOLED 1024×768 display delivers a clean image, while the 11.7° × 8.8° field of view is optimized for mid-range observation and target detection.

Technical specifications (complete – thermal module + system)

• Sensor: VOx Uncooled Focal Plane Array
• Resolution: 256 × 192 px
• Pixel pitch: 12 μm
• Frame rate: 50 Hz
• Spectral range: 8–14 μm
• Thermal sensitivity: NETD < 20 mK (@25°C, F1.0)
• Lens: 15 mm F1.0
• Detection range: up to 750 m
• Focus: Focus Free
• Field of view: 11.7° × 8.8° (20.5 m × 15.4 m @100 m)
• Minimum focus distance: 7 m
• Magnification: 2.2x – 17.6x (8x digital zoom)

Display & optics

• Display: AMOLED 0.39" – 1024 × 768
• Color palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
• Image settings: brightness, contrast, tone (Cold/Warm)
• Exit pupil: 6 mm
• Eye relief: 20 mm
• Diopter adjustment: -5D to +3D

Operational features

• Video recording
• Photo capture
• Audio recording
• Hot Track (automatic hotspot tracking)
• PIP (Picture-in-Picture)
• Distance measurement
• Wi-Fi hotspot (2.4 / 5 GHz)
• 64 GB internal memory (EMMC)

Build & power

• Protection rating: IP67
• Dimensions: 156.3 × 53.6 × 49.5 mm
• Weight: 296.5 g with battery
• Operating temperature: -30°C to +45°C
• Battery: removable rechargeable 18650 Li-ion
• Runtime: up to 6 hours @25°C / 5.5 hours @-20°C (hotspot on)
• Power supply: USB-C (5V 2A), compatible with power banks

Package contents

• 1 × HIKMICRO LYNX LE15 3.0 thermal monocular
• 1 × 18650 rechargeable battery
• USB-C charging cable
• User documentation

How to use

• Insert the 18650 battery correctly and fully charge it before first use
• Adjust the diopter (-5D to +3D) to match your eyesight
• Select the most suitable color palette depending on the environment
• Use Hot Track for quick identification of heat sources
• Activate PIP mode for improved target detail at distance
• After use in humid or dusty environments, clean and dry the device properly

Safety warnings

• Do not tamper with or modify the device
• Inspect the product before each use
• Do not operate outside specified temperature or environmental limits
• Keep out of reach of children
• Use only for thermal observation within intended applications
• Thermal devices may be subject to export regulations—verify compliance before international transfer

The LE15 3.0 stands out as a practical, no-compromise solution: compact, efficient, and equipped with all the essential features needed for real-world thermal observation without unnecessary complexity.
