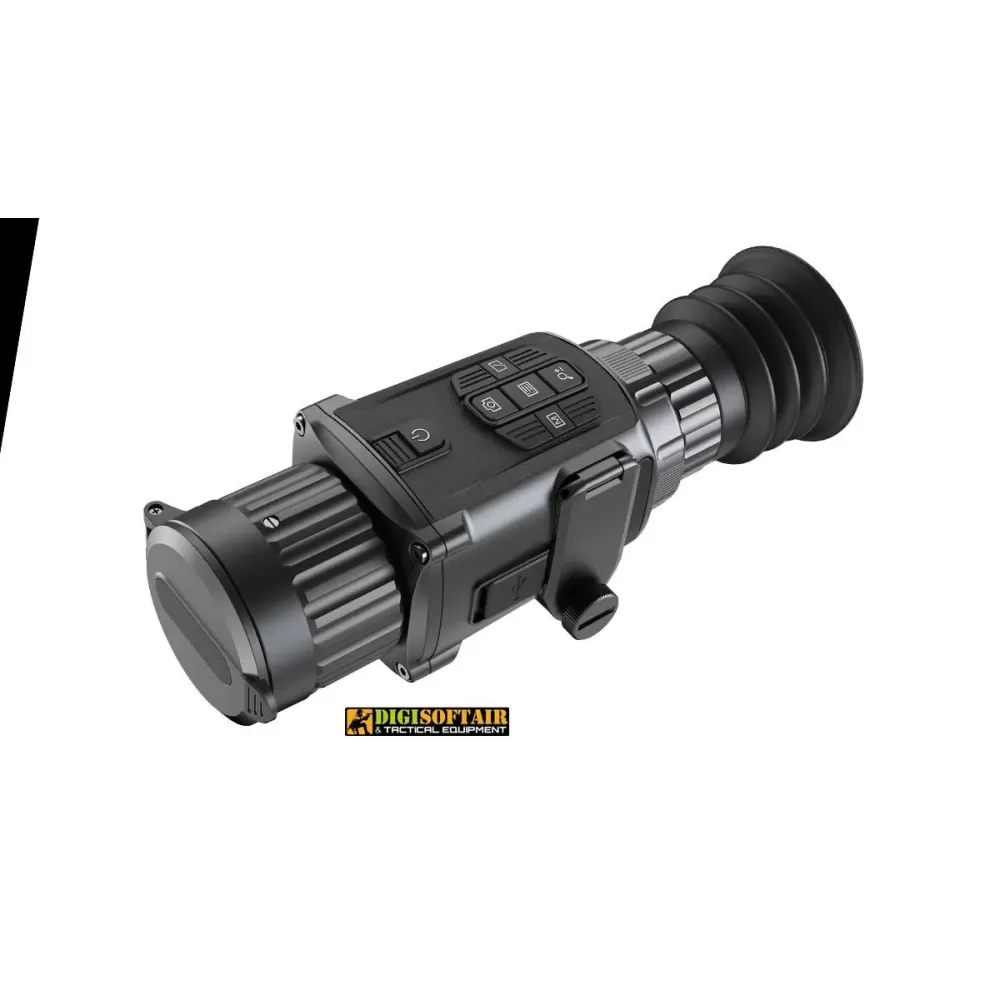

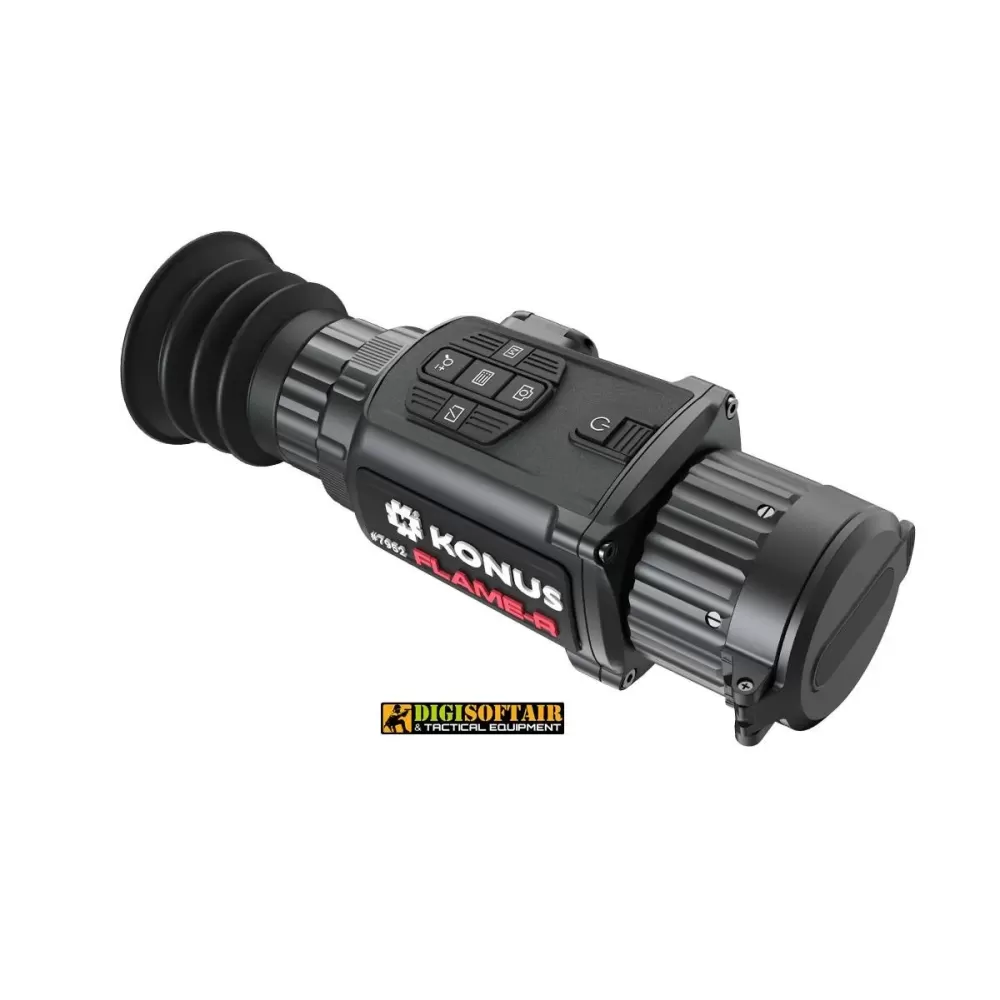

The thermal domain is a powerful and versatile tool that can be used as a thermal sight or as a handheld monocular for a wide range of activities, including hunting, tactical use, and surveillance. This model #7952 is completely waterproof and features a large zoom magnification range from 2.5x to 20x. It includes 5 selectable reticles in 3 colors and a special Picatinny rail mount. Thermal imaging is available in 4 different palettes with a resolution of 256x192 pixels, and you can also take photos or record videos.

Specifications:

• Includes Picatinny rail mount

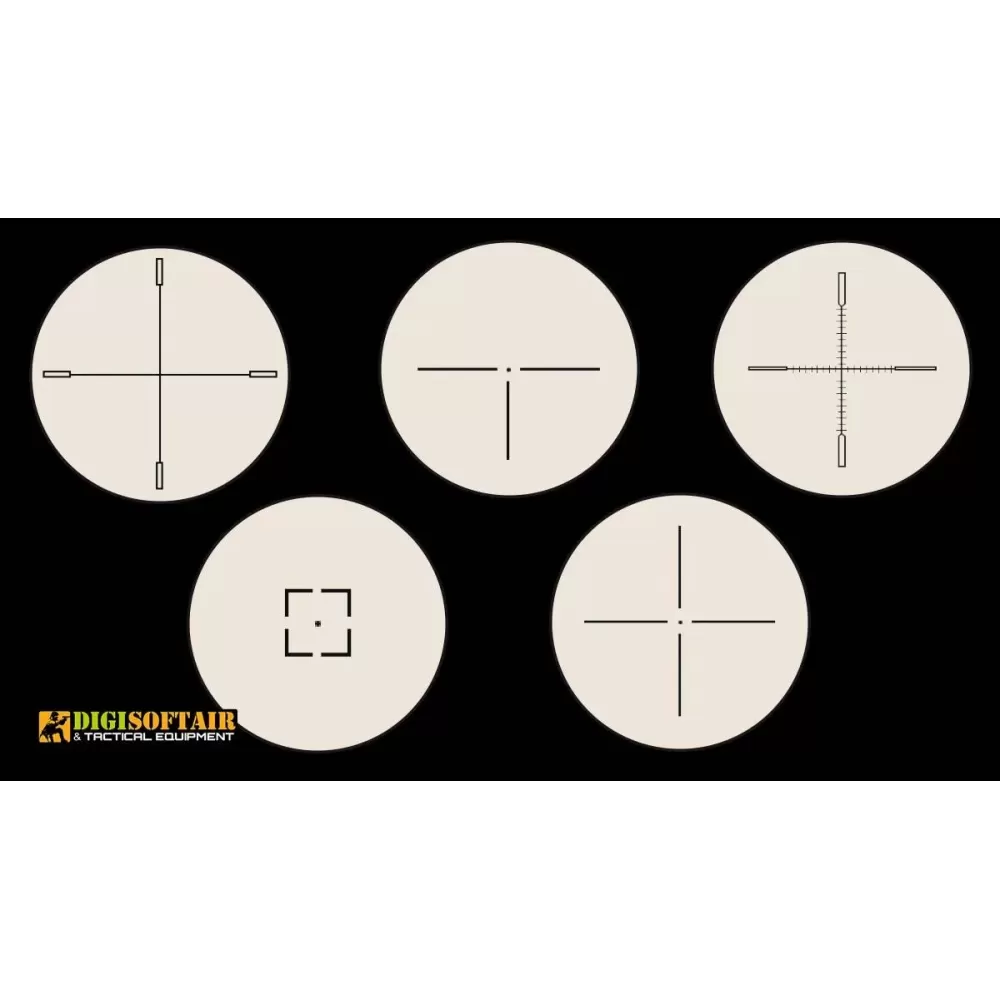

• 5 selectable reticles in 3 different colors (black, white, green)
• Also functions as a thermal monocular
• 2.5x to 20x zoom
• Waterproof up to 1 meter depth
• Thermal resolution: 256x192 pixels
• 4 different thermal palettes
• Built-in rechargeable lithium battery
• Wi-Fi hotspot
• Video recording function
• 16GB memory module

Technical Data:

• Detection distance (vehicle 1.4x4m) – 2428 meters
• Detection distance (human 1.8x0.5m) – 792 meters
• Recognition distance (vehicle 1.4x4m) – 607 meters
• Recognition distance (human 1.8x0.5m) – 198 meters
• Identification distance (vehicle 1.4x4m) – 303 meters
• Identification distance (human 1.8x0.5m) – 99 meters
• Weight: 430 grams
• Length: 187.2 mm

Thermal Module:

• Image sensor: Vanadium Oxide Ucooled Focal Plane Arrays
• Maximum resolution: 256x195 pixels
• Response waveband: 8µm to 12µm
• NETD: less than 35mk (@25°C)
• Lens focal length: 19mm
• MRAD: 1.13 mrad
• Field of view: 9.24' x 6.94' (HxV)
• Digital zoom: 1x-2x-4x-8x
• Aperture: F1.0
• Magnification: 2.47x

Image Display:

• Monitor: 0.39 inches – OLED – 1024x768
• Flat field correction (FFC): Auto, Manual, external correction

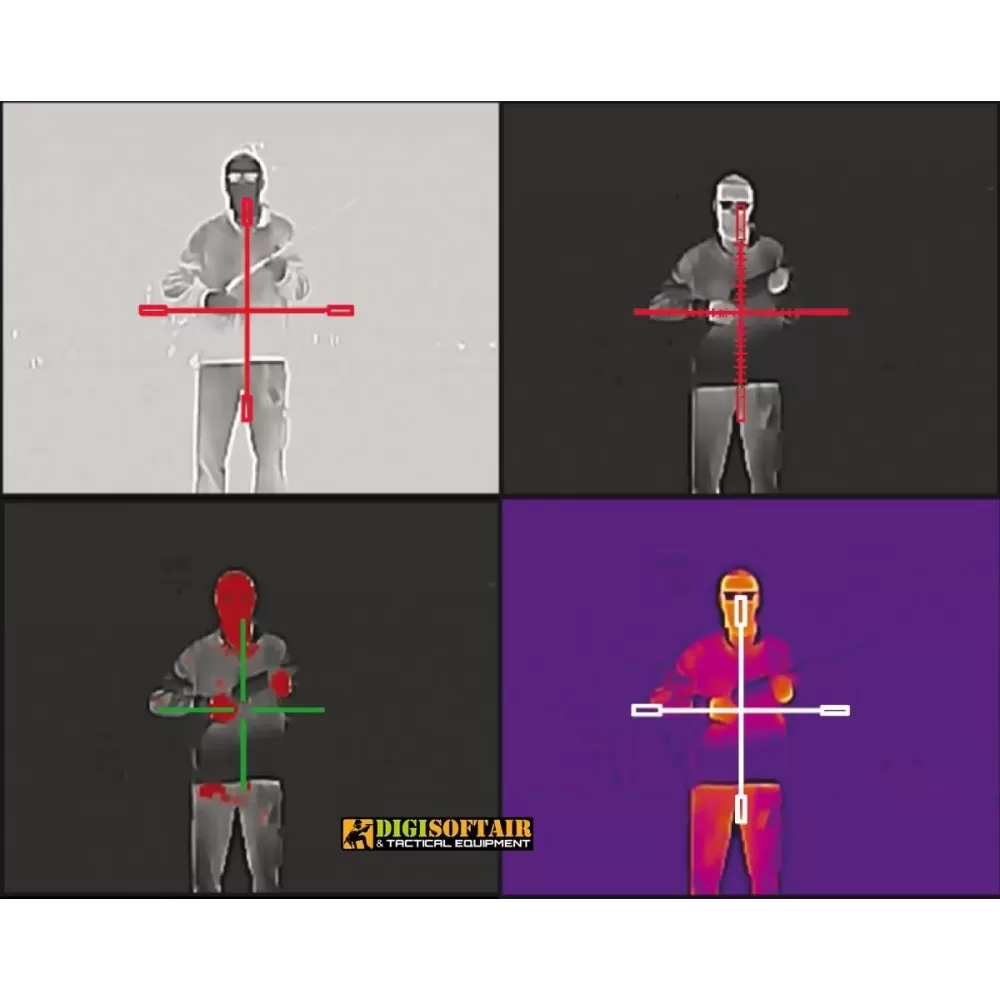

• Thermal palettes: Hot Black, Hot White, Red Hot, Fusion
• Image frequency: 50Hz

Additional Functions:

• Find the hottest point: Yes
• Wi-Fi: Yes
• Stand-by mode: Yes

System:

• Storage: Built-in 16GB memory module
• Video recording: Yes
• Capture images: Yes

Power Supply:

• Battery type: Two CR123a lithium batteries (3v) or Two rechargeable RCR123 batteries
• Battery life: Up to 5 hours continuously on (with Wi-Fi hotspot function turned off)
• Battery status display: Yes

General:

• Power supply: 5V DC/2A, 2W
• Operating temperature: From -20°C to 55°C
• Protection level: Water-resistant, immersion IP-67
• Dimensions: 187.2mm x 62.5mm x 59.2mm
• Weight: 430 grams
